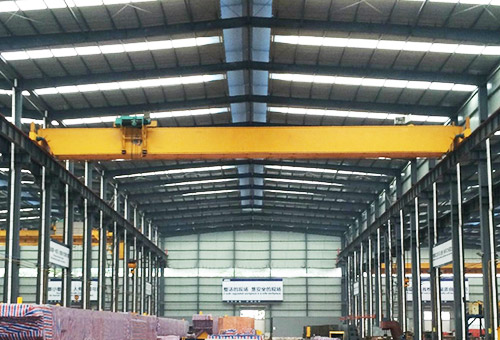

LDT Model Low Headroom Electric Single Girder Overhead Crane

Model:LDT
Load capacity:1~20 Ton
Span: 7.5~22.5m
Lifting height: 6~30m
Working class: A3
Control method:pendent control or radio remote control
Application: Height limited workshop/factory/warehouse with higher lifting height demands.



Introduction:
LDT low headroom EOT crane is specially designed minimize crane height to suit for height limited workshop with higher lifting height,

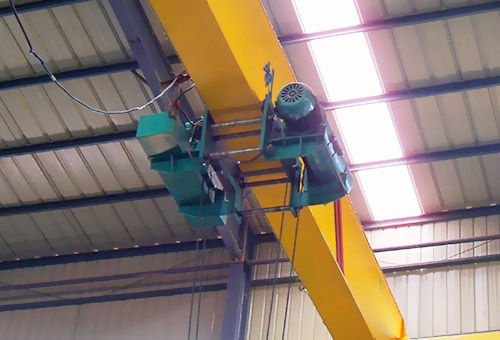

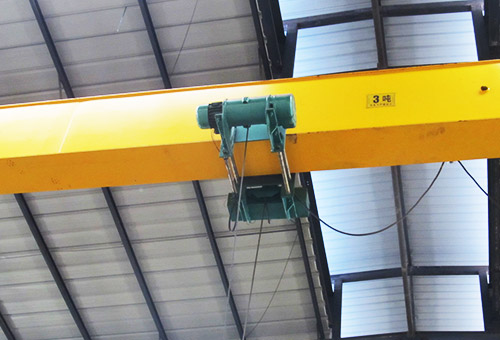

It equip with Special designed low headroom wire rope or chain hoist.
Compare to normally type crane, LTD Crane can save height space to increasing effective hoisting height,make full use of effective interior
space to meet lifting requirement.


Advantage:

  1. Minimize crane height
  2. Compact structure hoist
  3. Double Speed Hoist with VVVF speed controller
  4. High precision gear making crane low noise

Technical Parameter:

1~10t Technical parameter:

crane travelling mechanismworking speed(ground)20(ground)30room
speed ratio58.7839.3826.36
motortypeYSE802-4YSE90L-4ZDR100-4
power2×0.82×1.52×1.5
rotational speed1380
Lifting mechanism&electric hoist travelling mechanismmodel of electric hoistMD1型modelCD1型model
lifting speed8/0.8(7/0.7)8(7)
lifting height6、9、12、18、24、30
travelling speed20
motorcone squirrel-cage model
Working Duty A3
electric currentThree-phase A.C. 380V, 50Hz
Wheel diameterΦ270
width of trail37~70mm

16t Technical parameter:

crane travelling mechanismworking speed20/30
motortypeYSE90L-4YSE80L1-4YSE90L-4
power2×1.54×0.84×1.5
span7.5~1414<S≤19.519.5<S≤31.5
Lifting mechanism&electric hoist travelling mechanismmodel of electric hoistMD1型modelCD1型model
lifting speed3.5/0.353.5
hoisting height6、9、12、18、24、30
travelling speed20
motorcone squirrel-cage model
Working Duty A3
electric currentThree-phase A.C. 380V, 50Hz
Wheel diameterΦ370
width of trail37~70mm

20t Technical parameter

crane travelling mechanismworking speed20/30
motortypeYSE90L1-4YSE90L1-4
power4×1.54×1.5
span7.5~31.525.5~31.5
Lifting mechanism&electric hoist travelling mechanismmodel of electric hoistHC型modelHM型model
lifting speed3.53.5/0.35
hoisting height6、9、12、18、24、30
travelling speed20
motorcone squirrel-cage model
Working Duty A3
electric currentThree-phase A.C. 380V, 50Hz
Wheel diameterΦ370
width of trail37~70mm
