Diesel Winch

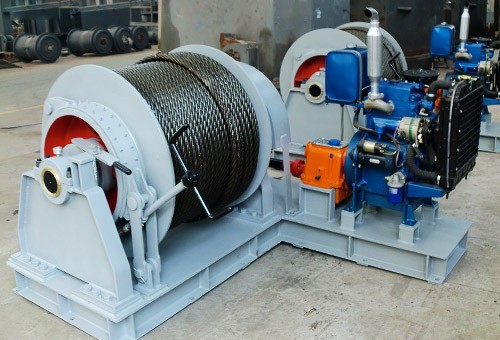

JMC Diesel Winch

INQUIRY

Compact structure and reasonable design. Easy to install, operate and maintenance. It can be used outdoors without electricity supply Small size, light weight and easy to carry.

Product description

The diesel winch is mainly suitable for outdoor places without electricity supply. It can be used alone or as a mechanical component of lifting machinery, road construction machinery and mining cranes.
This model has the advantages of simple operation, large roping, convenient movement and wide use. Mainly used in construction, hydraulic engineering, forestry, mining, port lifting or hauling materials.

JMC diesel winch technical parameter
Type	Rated Load (kN)	Rated Speed (m/min)	Rope Capacity (m)	Rope Diameter (mm)	Motor Type	Motor Power (kW)
JMC1	10	15	100	9.3	Y112M-6	3
JMC1.6	16	16	150	12.5	Y132M2-6	5.5
JMC2	20	16	150	13	Y160M-6	7.5
JMC3.2	32	9.5	150	15.5	YZR160M2-6	7.5
JMC5	50	10	270	21.5	YZR160L-6	11
JMC6	60	9.5	270	24	YZR180L-6	15
JMC8	80	8	250	26	YZR180L-6	15
JMC10	100	8	170	30	YZR200L-6	22
JMC12.5	125	8	300	34	YZR225M-6	30
JMC13.5	135	8	290	34	YZP225S-8	22
JMC16	160	10	500	37	YZR250M2-8	37
JMC20	200	10	600	43	YZR280S-8	45
JMC25	250	9	700	48	YZR280M-8	55
JMC32	320	9	700	56	YZR315S-8	75
JMC50	500	9	800	65	YZR315M-8	90
JMC65	650	10.5	3600	64	LA8315-8AB	160
