Electric Winch

  • JKD Electric portable planetary drive Winch
  • JKD Electric portable planetary drive Winch
  • JKD Electric portable planetary drive Winch

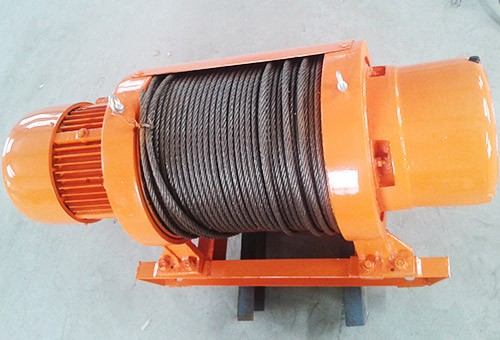

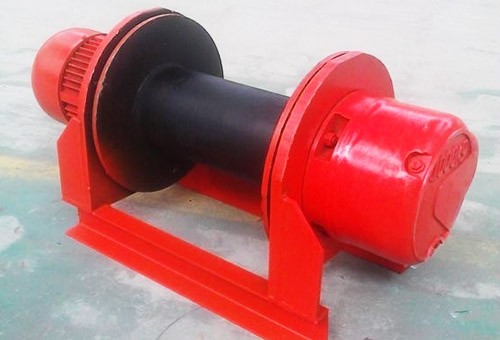

JKD Electric portable planetary drive Winch JKD Electric portable planetary drive Winch JKD Electric portable planetary drive Winch

JKD Electric portable planetary drive Winch

JKD Electric portable planetary drive Winch

  • 1. Compact structure and reasonable design.

  •
  • 2. Wireless remote control is available

  •
  • 3. Easy to install, operate and maintenance.

  •
  • 4. Specially designed electronic control system according to special needs, such as adding PLC, frequency converter, remote control, rope arranging device, limiter, encoder, etc


Product description

JKD series winch is a new hoist winch with small teeth ditterence planetary drive.It is also the ideal replacement of traditional winch.This series winch is widely used in building construction,piers,bridge and metallurgical industries of lifting and installation,especially suitable for lifting of main winch in the crane.


JKD compact high speed winch technical parameter
TypeRated Load
(kN)
Average Speed
(m/min)
Rope Capacity
(m)
Rope Diameter
(mm)
Motor Power
(kW)
Orm dimension
(mm)
Weight
(kg)
JKD0.757.5301009.33900*340*400165
JKD1.2512.546120117.51140*400*450315
JKD1.60162816012.57.51200*440*450350
JKD2.0203619013131400*470*548510
