Electric Winch

  • JK Fast Speed Electric Winch
  • JK Fast Speed Electric Winch
  • JK Fast Speed Electric Winch
JK Fast Speed Electric Winch JK Fast Speed Electric Winch JK Fast Speed Electric Winch

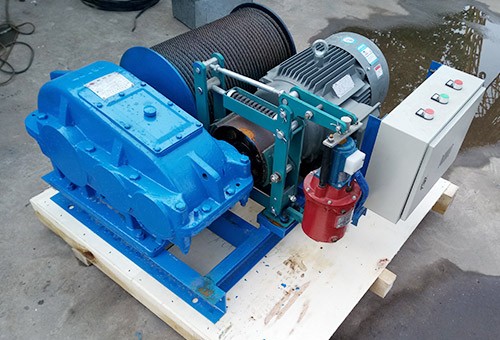

JK Fast Speed Electric Winch

JK Fast Speed Electric Winch

  • 1. Compact structure and reasonable design.

  •
  • 2. Easy to install, operate and maintenance.

  •
  • 3. Low noise and good working condition

  •
  • 4. Wireless remote control is available

  •
  • 5. Specially designed electronic control system according to special needs, such as adding PLC, frequency converter, remote control, rope arranging device, limiter, encoder, etc

  •
  • 6. 1.25 times load test before leaving the factory, high safety factor.


Product description

This series winch mainly used for large and oversize concrete construction of steel installation and disassembly of mechanical equipment.This structural characteristic is wire rope orderly arrangement lifting is safe and reliable.It is suitable for the installation of various bridges, ports, docks and other road and bridge projects and large-scale factories and mines engineering equipment.


JK electric high speed winch technical parameter
TypeRated Load
(kN)
Rated Speed
(m/min)
Rope Capacity
(m)
Rope Diameter
(mm)
Motor TypeMotor Power
(kW)
Orm dimension
(mm)
Weight
(kg)
JK0.55221907.7Y100L-43620*701*417200
JK110221009.3Y112M-44620*701*417300
JK1.6162415012.5Y132S-45.5945*996*570500
JK2202415013Y132M-47.5945*996*570550
JK3.2322529015.5YZR180L-6151325*1335*8401011
JK3.2B323025015.5YZR200L-6221900*1738*9851500
JK5503030021.5YZR225M-6301900*1620*9852050
JK5B502521021.5YZR225M-8222250*2500*13002264
JK8802516026YZR280S-8451533*1985*10453000
JK101003030030YZR315S-8552250*2500*13005100
