Boat Lifting Gantry Crane

INQUIRY

Overview：

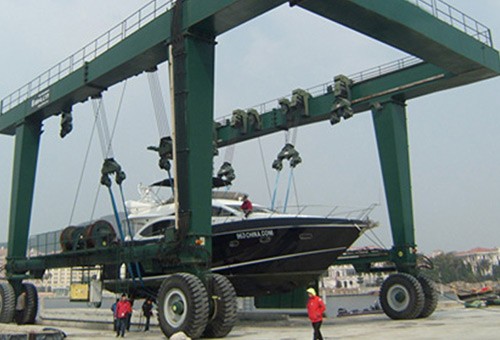

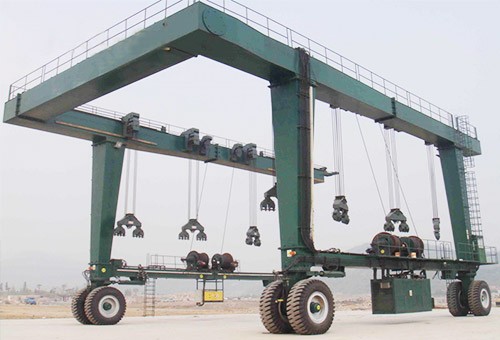

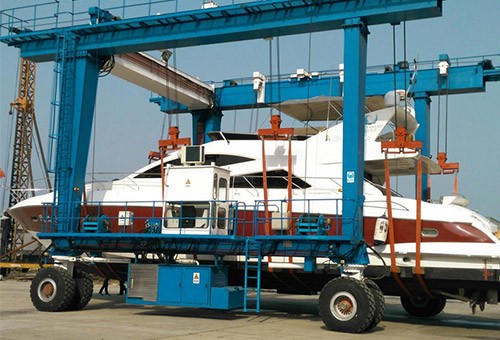

Boat lifting gantry crane is used for shipyard, yacht club, and water entertainment center, and navy,, mainly used for boat repair and maintenance work, whose rated capacity is 25~800t, full hydraulic drive, used flexible lifting belt to pull the boat bottom, multi-point lifting at the same time. Running and steering method is diverse, General speaking, it can be straight running, skew running, cross running, yaw running and pivot running. Our clients can choose different configurations according to their needs.

Feature:

1. Power is provided by the diesel engine, and the whole vehicle is hydraulically driven;
2. The hanging point distance can be adjusted, and multiple lifting points can be synchronously lifted;
3, Tire-type running mechanism is easy to operate, with oblique line, Ackerman steering and 360° rotation function in situ, with 4% climbing ability at full load;
4. The main beam and end beam are hinged to eliminate the local stress caused by walking in bad road conditions.

Advantage：
1. The height of yacht handling is unlimited;
2. The hull lifted has no damage;
3, The tire rolls, no slip;
4, multiple lifting points synchronous lifting;
5. The internal force release of the complex road frame;
6, Tire anti-slip technology;
7. Synchronous detection, feedback control;
8, flexible and variable steering control.

Technical parameter：

Rated load /t	50	100	150	200	300	600	800	1200
Lifting speed / m/min	0~2.5	0~1	0~1	0~1	0~1	0~1	0~0.6	0~0.6
Running speed / m/min	0~30	0~30	0~30	0~30	0~25	0~25	0~15	0~10
Grade ability	4%	4%	4%	4%	4%	4%	2%	2%
No.of lifting point	4/8	4/16	4/16	4/16	4/32	8/32	8/32	8/64
Diesel engine / kw	85	112	132	200	250	2x200	2x230	2x380
Dead weight /t	36	62	78	108	182	280	344	550

Model：MHB
Capacity: 50~800t
Appliance: Boat repair and maintenance in shipyard, yacht club, water entertainmen center and navy.

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
