Mobile Container Gantry Grane

INQUIRY

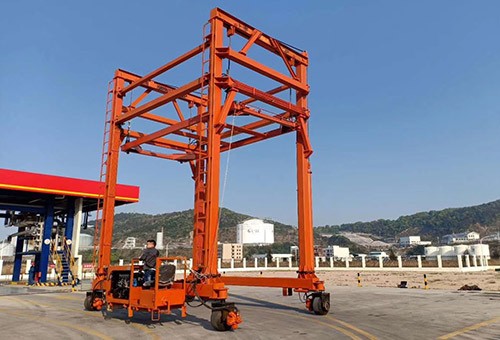

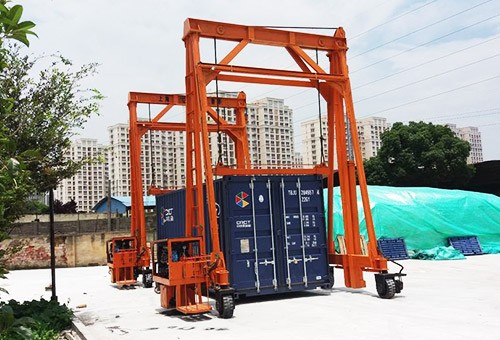

1.This portable container crane is powered with 490BPG diesel. It has the advantages of low noise, low vibration.
2.The main body is consist of steel frame structure, steel wire rope, hydraulic motor with hydraulic drive system, gear pump, steering cylinder, lifting cylinder, double-acting balancing valve, traveling rubber tires, etc.
3.Lifting mechanism equipped with 180mm diameter cylinder is with large lifting capacity, low pressure, stable & safety fall hoisting, efficient loading and unloading.
4.Using two-wheel drive, four-wheel steering, 110 degree maximum steering angle, which made it achieve any angle of the steering and panning with very small turning radius.
5.Control system consists of a complete set of valve and operating arm, flexible operation, simple and convenient.
6.The crane should travel at flat, hard, non-potholes ground. It’s suitable for containers handling of logistics companies, warehouses, docks, container yard, gods yard and other places.

1	min. passageway width		mm	3200	3200	3200
2	rated torque of hydraulic motor		Nm	1010	1010	1010
3	max.lifting speed	without load	mm/s	35	35	35
4	max.falling speed	without load	mm/s	25	25	25
5	max.lifting speed	with load	mm/s	25	25	25
6	max.falling speed	with load	mm/s	30	30	30
7	engine power		Kw	37	37	37
8	system pressure		Mpa	14	15	16
9	rotation angle of turning wheel		°	110	110	110
specifications of structure
10	LWH		mm	5055×2655×6320
11	max. height of lifting beam		mm	4660	4660	4660
12	lowest height of lifting beam		mm	2270	2270	2270
13	The minimum ground clearance		mm	110	110	110
14	Longitudinal track		mm	2205	2205	2205
15	crosswise tread		mm	3725	3725	3725
16	inside width of crosswise		mm	3275/3380	3275/3380	3275/3380
17	Wire rope diameter		mm	28	28	28
18	Tire size		mm	450×180	450×180	450×180

1. Compared with traditional container crane, its portable structure and light design make it easy to load in 40’ container for sea shipment which will save the buyer a large amount of shipping cost by bulk carrier transportation.
2. It's a cheap, convenient and practical container lifting equipment, its low price is a perfect option for users to reduce budget.

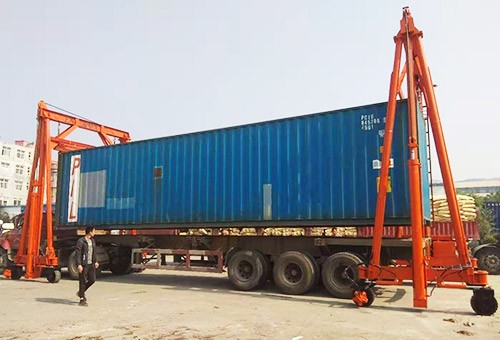

3. Meanwhile, it makes the container to be a transfer station, greatly reduced the waiting container trucks loading time, improved the efficiency of container trucks with 12 to 15 times.

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
