Electric hoist single girder semi gantry crane

INQUIRY

Overview

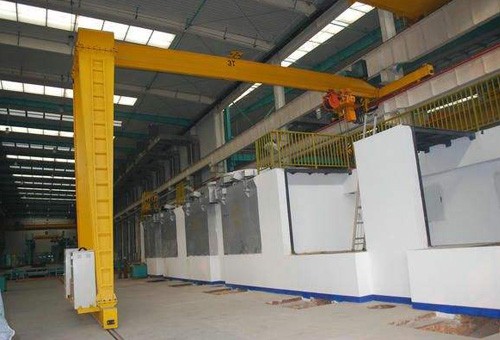

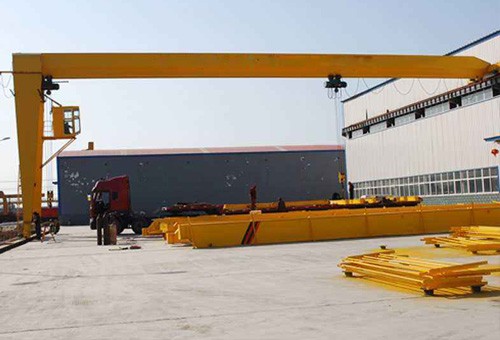

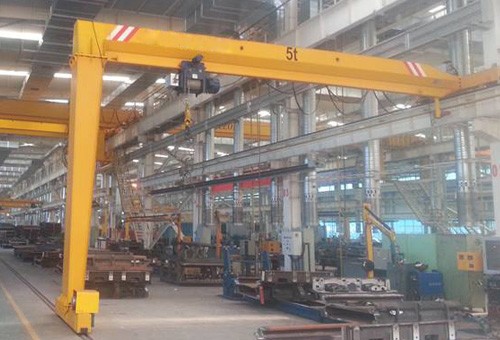

Electric hoist single girder semi gantry crane is a lightweight lifting equipment, and it makes full use of workshop
and the space outside to lift and hand cargo or material.

Feature

1, Light weight, large load and strong wind resistance.
2, Simple structure, and easily operation and maintainance.
3, Widely used and easily installation.

Advantage

1, Motor and gearbox adopt China famous brand products, like Nanjing Special motor, etc
2, Electrical adopts Siemens, Schneider,Chint famous brand.
3, Cheap price and more economies
4, Warranty: 24 months.

Technical parameter

Rated capacity / ton	5	10	16	20	32
Span/m	10-40
Lifting height/m	30
Working class	A3/1bM
Lifting speed/m/min	8	7	3.5	3.5	3
Trolley running speed/m/min	20	20	20	20	20
Crane running speed/m/min	20	20	20	20	20
Dead weight/t	10.5~37.5	16.8~52	18.9~65	24.5~77	27.5~98
Number of wheel	4	4	4	4	4/8
Max. wheel pressure/KN	52.5~12.1	95~183	131~242	167~298	238~41.5
Steel track recommended	P24	P38	P43	P43	P43
Power supply	3AC 220~480V 50/60Hz

Model: MHB

Capacity: 5~32 ton

Span: 10~40m

Hoisting height: 6~30m

Working class: A4/1AM

Appliance: Loading, unloading and handing of cargo in open space, such as freight yard, building material market, stone factory, steel structure factory and so on.

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
