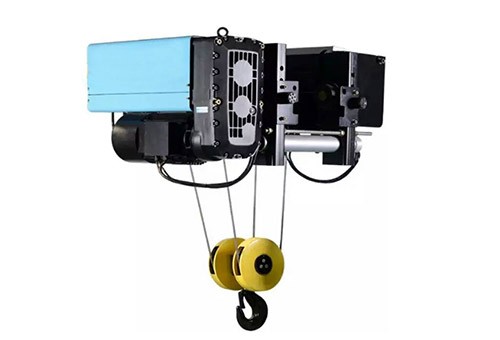

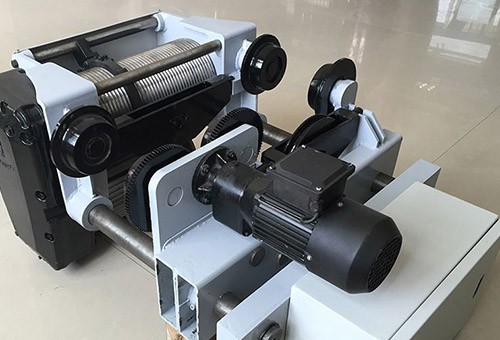

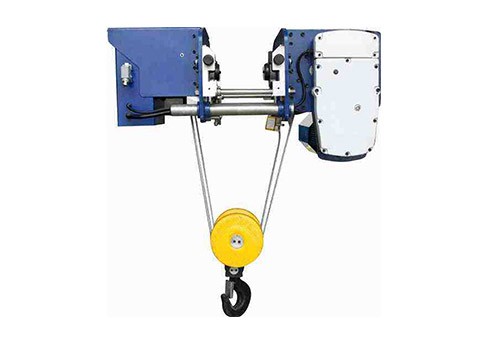

European Type Wire Rope Electric Hoist - Single Girder

INQUIRY

Overview:
European type electric hoist is a kind of new products developed with advanced design technology which accords to the European FEM standard and DIN standard. The whole set of electric hoist is a new energy-saving and environment friendly product.
It is widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.
It can also be used to the hoist double beam, gourd gantry crane or cantilever crane It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.

Features:

Full frequency conversion control, double-speed output, millimeter accuracy.
Hook 0 displacement at horizontal direction, rapid positioning.
Modern integration design, combine motor together with fan, reducer, rope drum and brake, compact structure.
Optimum cooling with good cooling performance, cooling is improved up by 30%, resistant to a temperature rise of 170 ° C.
Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster.

Advantages:

Compact structure, small headroom size, make full use of plant space.
Modular design and flexible combination.
Low-noise gearing design, silent operation.
High energy efficiency motor combined with gear reducer can achieve low energy consumption and high torque output.
High precision automatic adjustment of electromagnetic brake to achieve fast, low noise and reliable braking.
Wire rope with high strength and flexibility can achieve greater lifting breaking tension.
High strength alloy wheel set for longer life

Technical parameter:

Lifting capacity	1.6-80ton
Lifting height	3-50m or customized
Lifting speed	Double speed 0.8 /5 m/min; or customized
Traveling speed	Variable frequency speed: 2-20m/min; or customized
Working class	M5 / M6 (FEM 2M/3M)
Working temperature	-20~40℃
Power supply	AC, 3Phase, 220/380/400/415V, 60Hz
Control voltage	DC, 36 / 48V
Motor protection class	IP54 /IP55
Control way	Ground push botton control; wireless remote control
Safety device	Buffer, current overload protection, overload device, power failure protection, etc.
Parts brand	SEW /ABM motor, Schneider electrics, ABB frequency inverter
Application field	Factory, workshop, warehouse, power station, logistic,etc.
Painting color	Yellow, red, or customized.
Remark: special requirements can be customized based on client’s demands.

Working Class: Lifting capacity: 1T~ 100T(Customized)(for single girder or double girder cranes). Lifting height 3m~600m(Customized) Working class: M3-M8 Control voltage 48V Variable frequency motor of trolley with the speed of 5/20m/min Protection grade of electric motor is Grade IP55,and insulation grade is F Lifting hook group with safety caps Environment temperature:-20~+40℃

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
