Electric Hoist

Electric Wire Rope Hoist

INQUIRY

Overview

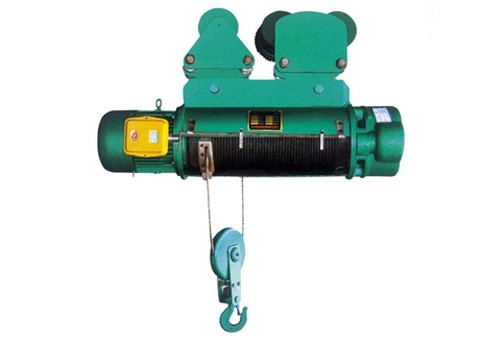

Wire rope hoist is a kind of small lifting equipment wire rope hoist. It has the advantages of compact structure, light weight, small size,
strong versatility of parts and convenient operation. It can be installed separately on I-beam or mounted on electric Or manual crane,
double beam, cantilever, gantry and other cranes.

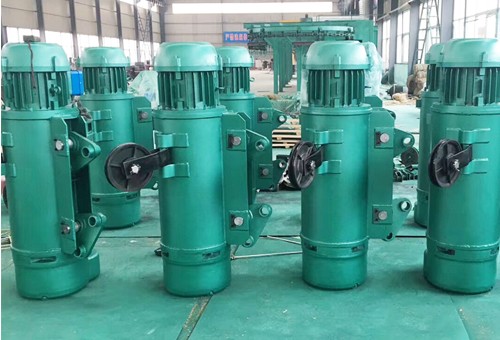

CD1 and MD1 electric hoists are widely used in factories, warehouses, docks, power stations, logging farms, etc. It is the ideal lifting equipment for lifting and transporting articles.

Advantage
1, Light weight,
2, Small volume, structure compact,
3, Variety of specifications,
4, Running smoothly
5, Easy operation and maintainance

Technical data

Type		CD1, MD1
Lifting weight(T)		0.25	0.5	1	2	3	5	10	16	20
Lifting height(m)		3.6.9		6.9.12.18.24.30					9.12.18
Hoisting speed(m/min)		8 0.8/8						7 0.7/7	3.5 0.35/5	4
travelling speed(m/min)		20	20/30						20
Wire rope	Dia	3.6	4.8	7.7	11	13	15	15	1735	19.5
	spec	6x19	6 x 37 + 1
Hoisting Motor	Type	ZD112-4	ZD121-4	ZD122-4	ZD131-4	ZD132-4	ZD141-4	ZD151-4		ZD152-4
			ZDS0.2/0.8	ZDS0.2/1.5	ZDS0.4/3.0	ZDS0.4/4.5	ZDS0.8/7.5	ZDS1.5/13	ZDS1.5/13
	Power(kw)	0.4	0.8 0.2/8	1.5 0.2/5	3.0 0.4/3.0	4.5 0.4/4.5	7.5 0.8/7.5	13 1.5/13	13 1.5/13	18.5
	Rotate speed	1380 (r/min)
	Current(A)	1.25	2.4 0.72/2.4	4.3 0.72/4.3	7.6 1.25/7.6	11 2.4/11	18 2.4/18	30 4.3/30		41.7
travelling Motor	Type	ZDY110-4	ZDY111-4		ZDY112-4		ZDY121-4
	Power(kw)	0.06	0.2		0.4		0.8	0.8x2
	Rotate speed	1400(r/min)	1380(r/min)
	Current(A)	0.3	0.72		1.25		2.4			4.3
NO of connecting		120
Working system		Intermediate FC=25% M3
Power source		380V 50HZ 3phs

Model: CD, MD
Capacity: 0.5~16 ton
Lifting height: 6~30 m
Working class: M3, M4
Ambient temperature: -20℃~45℃
Application: Workshop, warehouse, steel market, port and dock.

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
