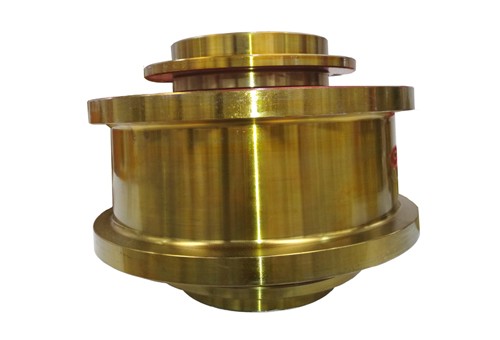

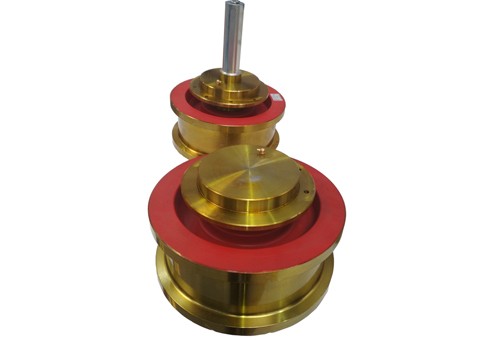

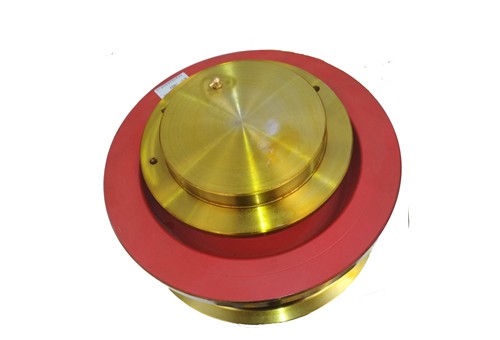

Forged wheel for overhead crane and gantry crane

Forged wheel for overhead crane and gantry crane

INQUIRY

Overview:
The crane wheel is a key component of the wheel block and is mainly used for the crane rail travel mechanism.
The wheel is a device used to support the crane and the load and to cause the crane to travel back and forth on the track.

Advantage:
1, Heat treatment: quenching and tempering
2, Detection technology : ultrasonic flaw detection
3, Bearing: SKF, NSK, LYC, HRB
4, Warranty: 24 months.

Technical parameter:

Wheel D/mm		Rail type	Working grade	Running speed V/m·min^-1
				＜60			60～90			>90～120
				Q/G
				1.1	0.5	0.15	1.1	0.5	0.15	1.1	0.5	0.15
Crane wheel	500	P38	Light	206	197	180	187	179	164	172	164	150
	500	P38	Middle	172	164	150	156	150	137	144	137	125
	500	P38	Heavy	147	141	129	134	128	117	123	117	107
	500	P38	Extra heavy	129	123	113	117	112	103	107	103	94
	500	QU70	Light	260	243	227	236	226	206	217	207	190
	500	QU70	Middle	217	207	190	197	189	172	181	173	159
	500	QU70	Heavy	186	177	162	169	162	147	155	148	136
	500	QU70	Extra heavy	163	155	142	148	141	129	136	129	116
	600	P38	Light	246	235	215	224	214	195	206	196	180
	600	P43	Middle	206	196	180	197	178	163	172	164	150
	600	P38	Heavy	176	168	154	160	153	140	147	140	129
	600	P43	Extra heavy	154	147	134	140	134	122	129	123	113
	600	QU70	Light	320	305	279	292	278	254	267	255	233
	600	QU70	Middle	267	255	233	244	232	212	223	213	194
	600	QU70	Heavy	220	218	199	209	199	181	191	182	167
	600	QU70	Extra heavy	200	191	174	183	174	153	167	159	140
	700	P43	Light	280	268	245	255	244	223	234	224	204
	700	P43	Middle	234	224	204	213	204	186	195	187	170
	700	P43	Heavy	200	192	175	183	174	159	167	160	146
	700	P43	Extra heavy	175	167	153	159	152	139	146	140	127
	700	QU70	Light	386	368	336	352	335	306	322	307	280
	700	QU70	Middle	322	307	280	294	280	256	269	256	234
	700	QU70	Heavy	276	263	240	252	240	219	230	220	200
	700	QU70	Extra heavy	242	230	210	220	210	191	201	192	175
	800	QU70	Light	437	417	381	398	380	347	364	348	318
	800	QU70	Middle	364	348	318	332	317	290	304	290	266
	800	QU70	Heavy	312	298	272	284	272	248	260	249	227
	800	QU70	Extra heavy	273	261	238	249	238	217	228	218	198
	900	QU80	Light	505	481	440	460	437	400	422	402	368
	900	QU80	Middle	422	402	368	384	365	334	352	336	307
	900	QU80	Heavy	361	344	315	329	312	286	302	288	263
	900	QU80	Extra heavy	316	301	275	288	273	250	264	251	230

Model: CL Size: φ500 ~φ900mm
Material : 4140、SSW-Q1R、CL60、C60
Processing craft: Forging
Appliance: Crane, port machinery, train, coke pushing machine, crane, salvage crane, mining, metallurgy and other fields.

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
