Marine Anchor winch

Marine electric anchor winch takes up less space on deck and easy to operate, environment friendly，easy to maintain,Low noise and good working condition Class Available for Class: CCS, ABS, LR, BV, GL, NK, DNV, KR, RINA, etc Wireless remote control is available Bolt hole mounting for easy installation and removal High quality marine electric motor,brake and gear box

Product description

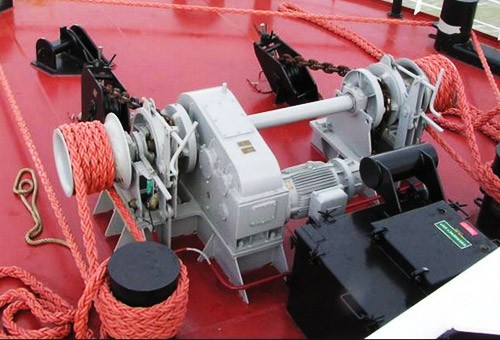

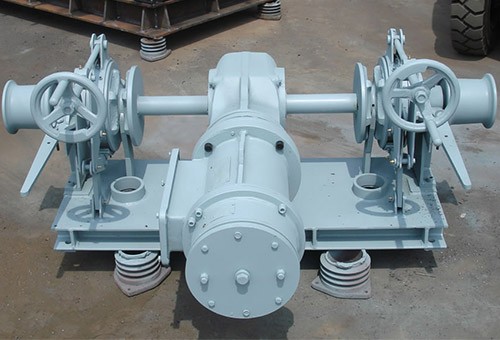

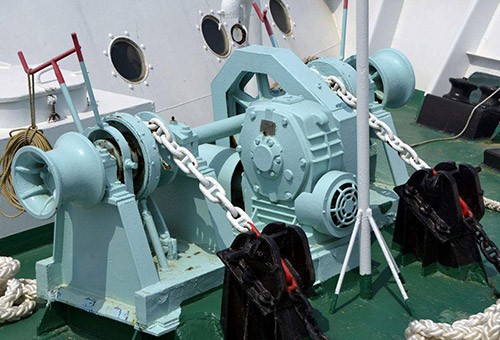

Marine anchor winch is the device placed on deck applied for anchoring operations when a ship arrives and needs to stop at a pier or port or set sail after the stop.It makes use of an integral gearbox and motor assembly, all typically located above deck with a horizontal shaft through the unit and wheels for chain and/or rope on the other side.

Single type and symmetrical type electric windlass techinical parameter
Type	Dia.of Chain (mm)	Working Load (kN)		Overload Pulling Force (kN)		Holding Load (kN)		Nominal Speed (m/min)	Warping Load (kN)
Type	Dia.of Chain (mm)	AM2	AM3	AM2	AM3	AM2	AM3	Nominal Speed (m/min)	Warping Load (kN)
NDM17.5	17.5	13	14.6	19.5	21.9	80	115	9	8
NDM19	19	15.3	17.2	23	25.8	95	135	9	10
NDM22	22	20.6	23	30.9	34.5	126	180	9	15
NDM26	26	28.7	32.1	43.1	48.2	175	250	9	20
NDM30	30	38.3	42.8	57.5	64.2	231	330	9	30
NDM34	34	49.1	54.9	73.7	82.4	294	421	9	30
NDM38	38	61.4	68.9	92.1	103.4	365	522	9	40
NDM42	42	75	83.8	112.5	125.7	442	632	9	50
NDM46	46	89.9	100.5	134.9	150.8	526	753	9	50
NDM50	50	106.3	118.8	159.5	178.2	617	882	9	50
