Electric Winch

Electric Mooring Winch

INQUIRY

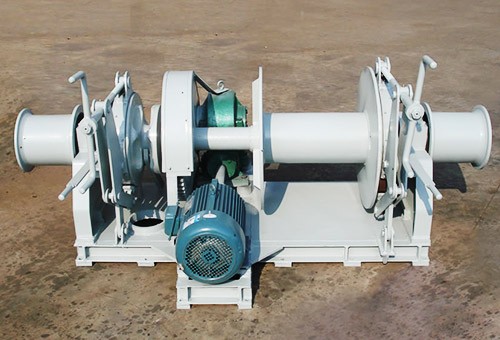

Electric Mooring Winch

Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life； low noise during operation; good economic performance； Class Available for Class: CCS, ABS, LR, BV, GL, NK, DNV, KR, RINA, etc Wireless remote control is available Bolt hole mounting for easy installation and removal High quality marine electric motor,brake and gear box.

Product description

Electric mooring winch is electrically driven by the motor, vessels use it for drawing out and pulling in the lines of cable, rope or chain to attach to docks and stop there safely without drifting and moving; except that, the winch also has other functions.

Electric Mooring Winch
Type	Drum Load (kN)	Nominal Speed (m/min)	Holding Load (kN)	Dia.of Rope (mm)	Rope Capacity (m)
NDX30	30	15	90	16	150
NDX40	40	15	120	18	150
NDX50	50	15	150	20	180
NDX75	75	15	220	26	180
NDX80	80	15	240	26	200
NDX100	100	15	300	28	200
NDX125	125	15	310	30	200
NDX150	150	15	450	32	250
NDX160	160	15	470	32	250
NDX200	200	9.6	590	40	250
NDX250	250	9.3	730	44	250
NDX315	315	7.8	940	52	250
NDX350	350	7.8	1050	54	250
NDX400	400	7.8	1080	56	250
