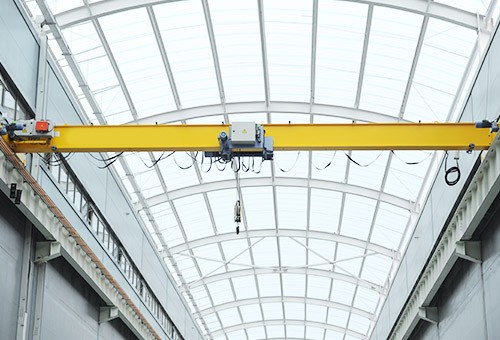

CE Approved European Type Electric Overhead Hoist Crane

Overview

European type electric overheaa crane is a kind of new style one, which was design according to FEM standard.  The crane has the characteristics of lightweight structure and personalized mechanism, and will  take more economic benefit for our users.

Feature

 1, Light crane weight ;
2, Light crane weight with lower costs;
3, VVVF Technology ;
4, Fast & slow two hoisting speeds making works more precise;
5, Nice appearance design, suitable for high-end workshop demands
6, Modular designing
7, Bias-rail box girder or H type girder
8, Q345B Material
9, Sandblasted before paintin
10, Whole Rectangular tube design end carriages post processing by CNC

Advantages

1, Light weight makes steel workshop structure smaller and lower cost
2, VVVF makes crane running steady & smoothly, decreasing impact on workshop;
3, Modular designing making crane installation easy;
4, Whole tube end carriages with machining processing making crane with low noise;
5, High strength bolts connect main beam & end carriages, making crane firmer, conveniently transportation, installation and maintenance;
6, Compact structure takes all advantage of workshop space;
7, Compatible with high-end configuration, making the crane more intelligent and can be monitored， such as PLC + man-machine interface, safety monitor system, VVVF SYSTEM, Multi - points positioning function, Error warning, Wifi connection with parts wearing condition monitoring system, etc.


Technical Parameters Brief Description

1, Standard Crane traveling seed is 2-20m/min (regulated by VVVF)
2, Standard hoist trans-versing speed is 2-20m/min (regulated by VVVF)
3, Except for the standard speeds, there are many hoisting/traveling speed on optional;
4, Three control methods on optional: Pendent control panel; Wireless Remote; or Pendent control panel + Wireless remote two methods;
5, The standard parameters are as below, if any nonstandard requirements, contact us freely for detailed information;

• Working Class: Model: CXTD Capacity: 1~20 ton Span: 9.5~24 m Lifting height: 6~18m Working class: 2M Design standard: FEM Application: Workshop, warehouse, production line, etc
