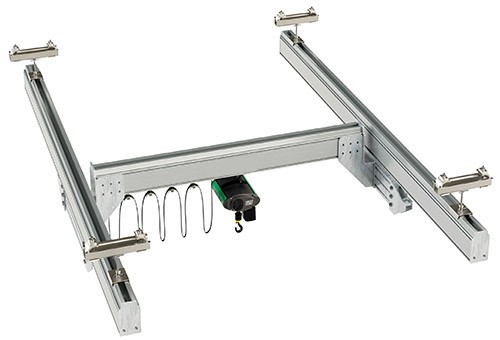

Deadweight Aluminum Rail Crane System

INQUIRY

Introduction:
Light aluminum rail crane is more optimal crane lifting design, Max load 2000kg, maintenance-free system and more smoothly operation and high efficiency!
It provides a suitable solution for almost all requirements, from simple workshop cranes to highly complex logistics flow layouts, capable of designing almost all hanging cranes or monorail systems. Aluminum Rail profiles can also be combined with KBK rail profiles or can be fitted later.

Features:
1. More lightweight Aluminum rail system
2. Rigid Ergo and Classic lifting point as optional
3. A built-in slide contact wires
4. Maintenance free rail system
5. Compatible products: Chain hoist, manipulator, vacuum lifter,etc

Advantage:
1. Optimum ergonomics Principle
2. Outstanding cost-effectiveness
3. Maximum flexibility
4. Considerable cost savings

Technical parameter:

Hanging point Spacing（m）
Rail type/Capacity (kg)	100	150	250	500	750	1000	1250	1600	2000
A12	4.7	3.8	3.0	2.1	1.5	1.1
A16	7.1	5.8	4.5	3.2	2.4	1.8	1.5	1.1
A18	8.0	8.0	6.5	4.6	3.8	3.2	2.8	2.2	1.8
A22	8.0	8.0	8.0	6.0	5.0	4.3	3.8	3.0	2.4

Load capacity: 125~3000kg
Material: Aluminum
Hoist type: Hook chain hoist
Working class: A3
Mode of operation: manual/electric

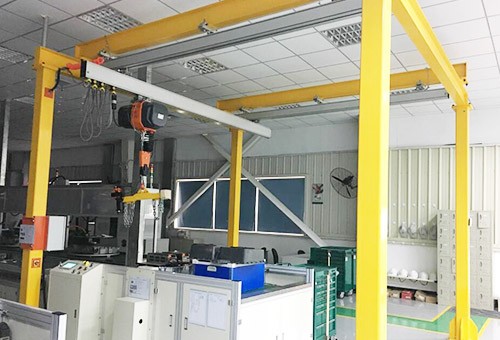

Installation method: suspension/hanging/self support

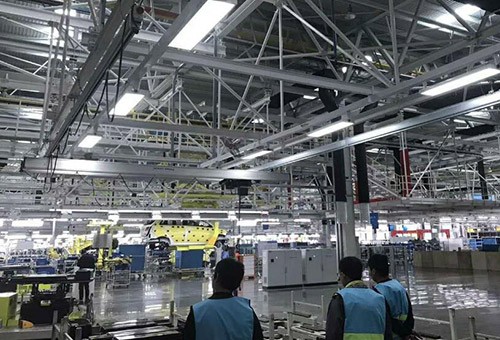

Application place: Workshop/warehouse/Assembly shop/Car factory/Auto shop ,etc.
