Single Girder Overhead Crane

Introduction:

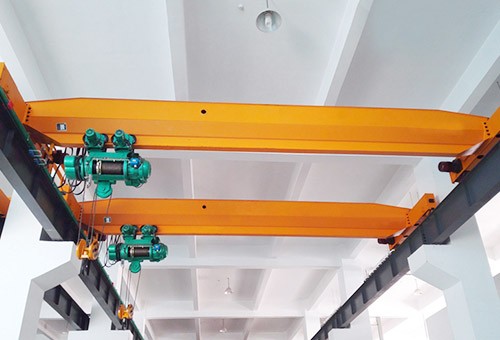

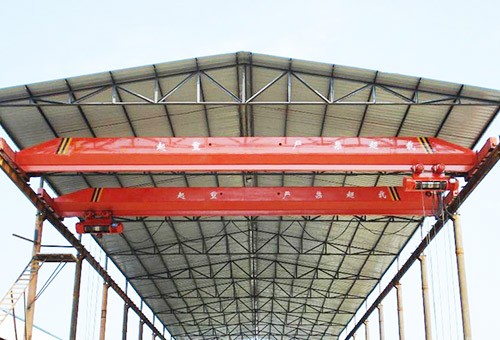

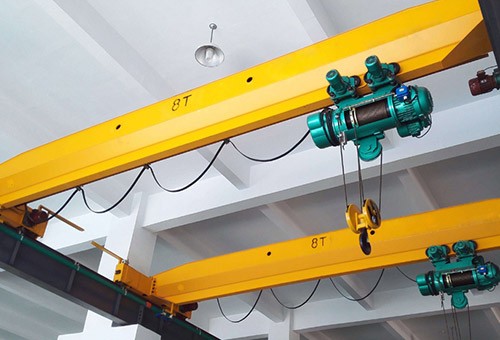

LDA single girder overhead crane is standard space delivery equipment, which be works with CD/MD Electric hoist. Main functions: Intermittent and periodic to finish cargo/ material lifting and delivery by using hook or other hoisting device. Its mechanization and automation not only reduce hard physical labor ,also improve high working efficiency!

It consists of the crane travelling mechanism, hoisting mechanism & cross travelling mechanism and electrical control system, etc. Fine Welded process of beam, optional standard speed or VFD traveling system .Various operation method for choosing :Cabin, radio controller or hand controller !

Advantage:
1. Fine welded box type crane beam
2. Forging wheels
3. Cone squirrel cage motor
4. Large space between wheels, smooth operation
5. Domestic and foreign electric parts as optional

Safety Protection Devices
1. Weight overload protection device
2. Top quality polyurethane buffer
3. Crane travelling limit switch and lifting limit switch
4. Voltage lost protection function, when power is failure then it needs reset all function to start working.
5. Emergency stop system, in case of emergency, the operator could use emergency stop button to cut off power and stop the crane operation immediately to protect 7. human and relevant property.
8. Current overload protection function.
9. Phase protection function

1~10t Technical parameter:

crane travelling mechanismworking speed(ground)20(ground)30room
speed ratio58.7839.3826.36
motortypeYSE802-4YSE90L-4ZDR100-4
power2×0.82×1.52×1.5
rotational speed1380
Lifting mechanism &electric hoist travelling mechanismmodel of electric hoistMD1 modelCD1 model
lifting speed8/0.8(7/0.7)8(7)
lifting height6、9、12、18、24、30
travelling speed20
motorcone squirrel-cage model
Working DutyA3
electric currentThree-phase A.C. 380V, 50Hz
Wheel diameterΦ270
width of trail37~70mm


16t Technical parameter:

crane travelling mechanismworking speed20/30
motortypeYSE90L-4YSE80L1-4YSE90L-4
power2×1.54×0.84×1.5
span7.5~1414<S≤19.519.5<S≤31.5
Lifting mechanism &electric hoist travelling mechanismmodel of electric hoistMD1 modelCD1 model
lifting speed3.5/0.353.5
hoisting height6、9、12、18、24、30
travelling speed20
motorcone squirrel-cage model
Working Duty A3
electric currentThree-phase A.C. 380V, 50Hz
Wheel diameterΦ370
width of trail37~70mm


20t Technical parameter

crane travelling mechanismworking speed20/30
motortypeYSE90L1-4YSE90L1-4
power4×1.54×1.5
span7.5~31.525.5~31.5
Lifting mechanism &electric hoist travelling mechanismmodel of electric hoistHC型modelHM型model
lifting speed3.53.5/0.35
hoisting height6、9、12、18、24、30
travelling speed20
motorcone squirrel-cage model
Working Duty A3
electric currentThree-phase A.C. 380V, 50Hz
Wheel diameterΦ370
width of trail37~70mm


  • Working Class: Model: LDA Load capacity: 1~20 Ton Span: 7.5~22.5m Ligting height: 6~30m Working class: A3 Working temperature: -20 ~ +40 ℃,Humidity≤85% Application: workshops, metallurgy, warehouse and assembly shops etc

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983


FAQ

  • Q:What’s your MOQ?

    A:1 Set;

  • Q:What’s your package?

    A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

  • Q:What’s your delivery period?

    A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

  • Q:Do you provide lift tools?

    A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc

  • Q:Could your winches drag inclined?

    A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
