Low height workshop LDP electric hoist Overhead Crane

Introduction:

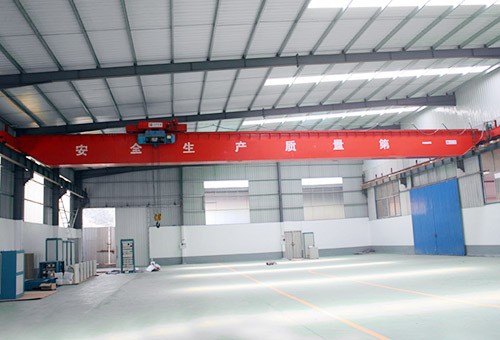

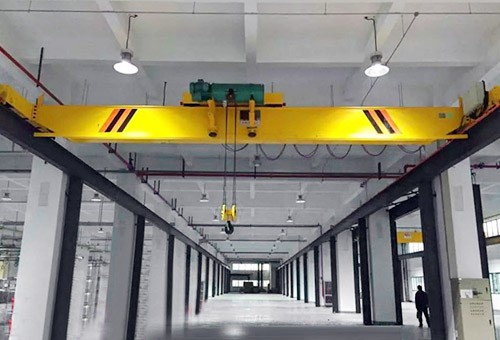

LDP motor driven Single girder crane is kind of low headroom overhead crane,which adopts box beam, Partial rail form, customized trolley system combined with CD/MD hoists.The electric hoist is installed at one side of main girder, can increase service space of hook and save factory cost.
It widely used in the situationthat low clearance height of workshops to achieve max height utilization.
Compared with LD single girder overhead crane, LDP Crane structure has features of high stability ,high effective lifting height ,economical and affordable!

Advantage:

1. Crane beam welded construction, lower dead weight but high rigidity
2. Stable soft start motor driven, smooth operation.
3. CD/MD(single/double speed) hoist as optional
4. Domestic/Siemens /Schneider brand Electric systems as optional
5. Nanjing special brand motor for hosting and travelling
6. Tailong / Taixing brand for heavy duty gearbox!
7. Long service life with a low-maintenance.

Safety features:

1. Weight overhead protection device,
2. Current overload protection system
3. Voltage lower protection function,
4. Main lifting motor with thermal protection
5. Top quality load long time bearing polyurethane material buffer
6. Emergency stop system,
7. Crane travelling limited switch
8. Hooks with latch
9. Protective earth
10.Operation model: Pendent line control; remote control

Technical parameter:

• Model: LDT

• Load capacity: 1~20 Ton

• Span: 7.5~22.5m

• Lifting height: 6~30m

• Working class: A3

• Control method: pendent control or radio remote control

• Application: Height limited workshop/factory/warehouse with higher lifting height demands.
