Customizable Hydraulic Crane Marine Knuckle Boom Deck Crane

Customizable Hydraulic Crane Marine Knuckle Boom Deck Crane

INQUIRY

Customizable Hydraulic Crane Marine Knuckle Boom Deck Crane

We have over 20 years’ experience of industrial crane and winch manufacturing.Our lifting products can be used at almost all industries.We have Gantry Crane,Overhead Crane,Port Crane,Rubber Tyred Gantry Crane,Electric Winch,Gate Winch,EOT Crane,Bridge Crane Hoist,Steel Crane,Electric Boat Anchor Winch,Portal Crane,Shop Bridge Crane Electric Chain Hoist,Mooring Winch,Tugger Winch,Drum Winch,Mobile Overhead Crane,Overhead Winch,and many many more to go.Please do feel free to ask for more information.

Marine Telescopic Boom Deck Crane

Also known as Marine Deck Cranes, Telescopic Boom Hydraulic Marine Cranes---Cargo sea loading and unloading port cranes.etc

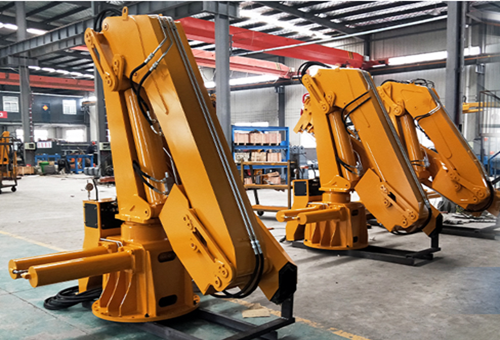

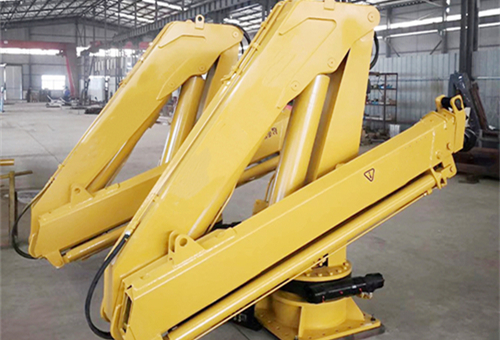

Knuckle Boom Crane is a reliable product for general cargo handling services and offshore use. In various ship types and offshore installations. The required specifications of different boom lengths and lifting capacity from 10 meters to 2000 meters are tailored for different sea conditions and working conditions. All ship cranes can be equipped with different accessories and grades certified by all major classification societies.

deck crane.jpg

Introduction of Telescopic Crane:

■ Large turning torque, able to withstand the ship's comprehensive tilt Angle up to 5.38° (working condition in standard sea area), wind level 6.

■ Epoxy zinc-rich primer. After debugging, the machine is sprayed with polyurethane acrylic finish, which is more corrosive to seawater.

■ External/internal oil cylinder telescopic, more reliable performance.

■ The whole crane is sealed to prevent the influence of the damp environment, and the internal key parts are well protected to achieve the purpose of anti-corrosion.

■ Double rack oil cylinder allows large rotary torque, small rotary resistance, large diameter force, large torque, low failure rate, long service life and convenient maintenance.

Keywords:Marine Crane,Deck Crane,Telescopic Crane,Knuckle Boom Deck Crane

Diesel Winch Application:

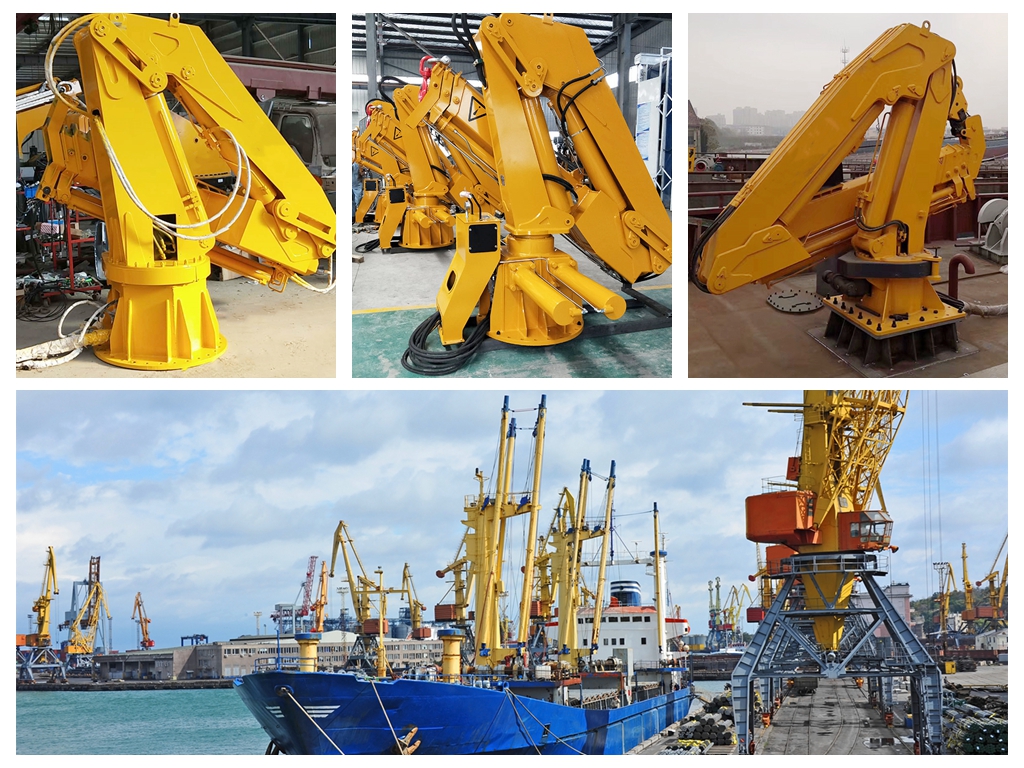

Application: On board,Vessels,Marine,Ocean,Offshore ,Port ,Dock, Harbor,etc.

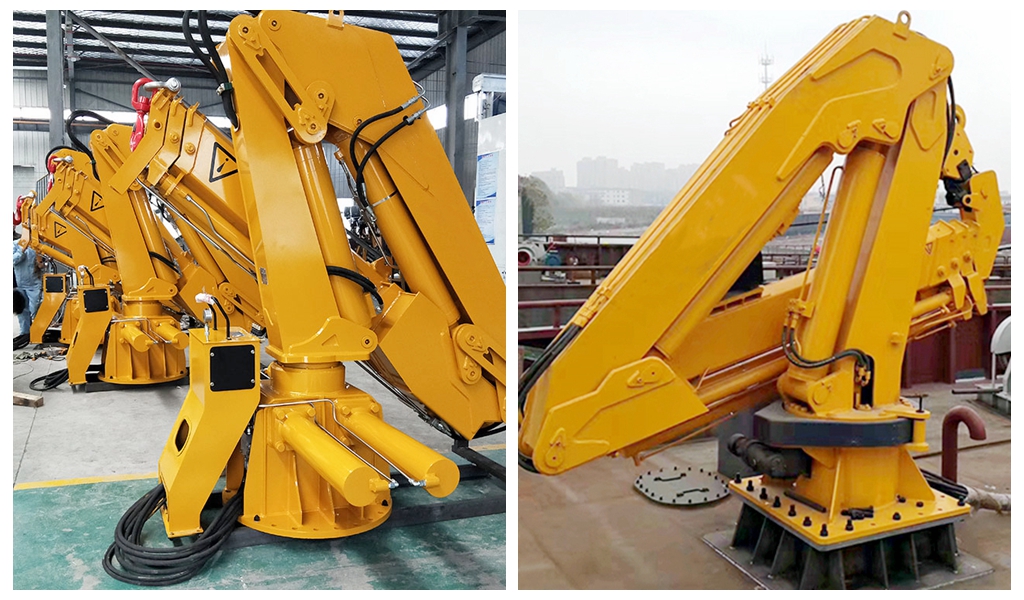

marine knuckle boom deck crane.jpg

Max. lifting capacity	8000kg
Max. lifting moment	16.0T.m
Recommened power	25kw
Hydraulic system flow	40L/min
Hydraulic system pressure	28Mpa
Oil tank capacity	160L
Slewing angle	360 dregree
Self weight	2750kg
Installation space	2250mm
