Gantry Crane

Indoor electric hoist gantry crane

INQUIRY

Model: MH
Capacity: 5~32 ton
Span: 10~40m
Hoisting height: 6~30m
Working class: A4/1AM
Appliance: Loading, unloading and handing of cargo in workshop or warehouse.

Overview:

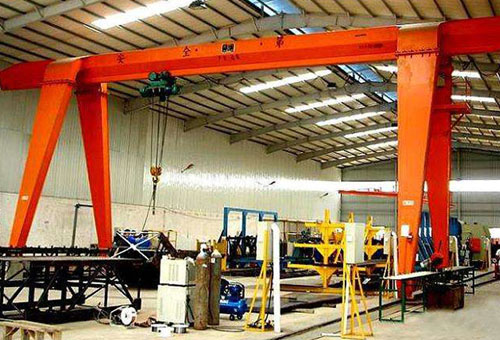

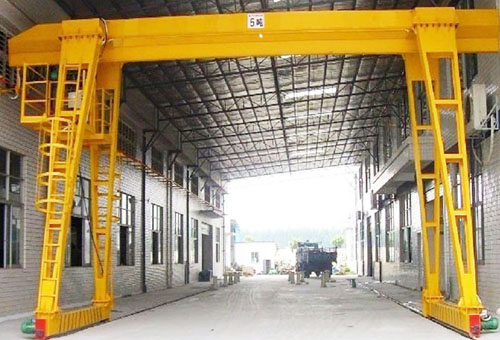

Indoor electric hoist single girder gantry crane is a lightweight hoisting equipment, its hoisting mechanism is electric hoist, and main girder
and leg are box type structure, is a ideal choice for hoisting cargo.

Feature:
1, Simple structure, light weight, easily installation and maintainance.
2, Easily operation and Multiple operation modes
3, Widely used, like workshop, warehouse, power plant port and dock.

Advantage:
1, Main structural parts are made of Q345B steel plate from famous steel plants
2, Motor and gearbox adopt China famous brand products, like Nanjing Special motor, etc
3, Electrical adopts Siemens, Schneider,Chint famous brand.
4, Cheap price and more economies
5, Warranty: 24 months.

Technical parameter:

Rated load/ton	5	10	16	20	32
Span/m	10-40
Lifting height/m	30
Working class	A3/1bM
Lifting speed/m/min	8	7	3.5	3.5	3
Trolley running speed/m/min	20	20	20	20	20
Crane running speed/m/min	20	20	20	20	20
Dead weight/t	10.5~37.5	16.8~52	18.9~65	24.5~77	27.5~98
Number of wheel	4	4	4	4	4/8
Max. wheel pressure/KN	52.5~12.1	95~183	131~242	167~298	238~41.5
Steel track recommended	P24	P38	P43	P43	P43
Power supply	3AC 220~480V 50/60Hz
