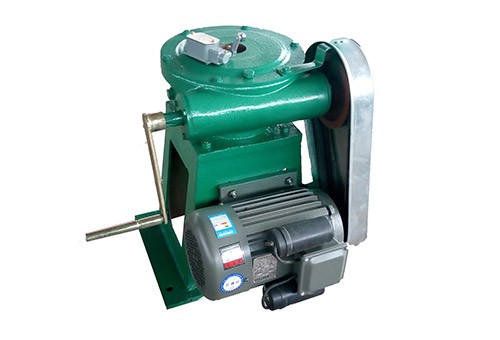

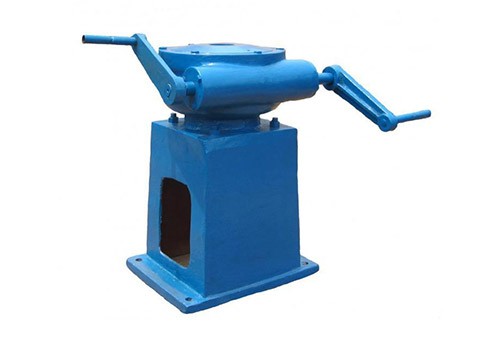

Manual and Electric Driving Screw Hoist

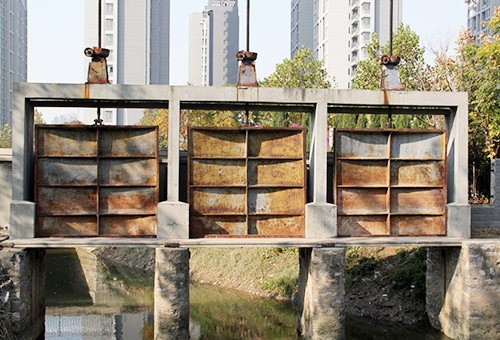

1. Used for irrigation and small flood control
2. self-locking function
3. Completely closed, can be installed in the open air
4. able for small plane gate

Product description

The screw hoist, also known as the screw hoist, is a machine that uses a threaded rod to connect directly or through a guide slider, a connecting rod and a gate leaf, and the screw moves up and down to open and close the gate. With the extensive development of water conservancy and hydropower projects, hoists and gates used in engineering projects such as river dykes and hydropower stations in reservoir irrigation areas have been widely adopted

Advantage:
Because the winch type hoist has many speed reduction programs and large speed ratio.
It has been enlarged by the pulley block and is suitable for gates with larger orifice sizes and heads.
The wire rope can be wound in a single layer or multi-layered to facilitate opening of a gate or deep hole gate with a large stroke.
The direction of the force of the wire rope can be appropriately oscillated, or the direction of the force can be changed by the additional embedded diverting pulley. Therefore, the cooperation of the gate and the hoist has greater flexibility.
When electric is used, the speed of opening and closing is fast, and it is suitable for accident gates and gates that are frequently opened and closed.

QL model single lifting point screw hoist

Model	Hoisting Force (KN)	Lowering Force (KN)	Lifting Stem (mm)			Lifting height (m)	Lifting speed		Motor		Foundation bolt	Weight (kg)
Model	Hoisting Force (KN)	Lowering Force (KN)	Total length	Thread length	Diameter	Lifting height (m)	Manual (r/min)	Electric (mm/min)	Model	Power (KW)	Foundation bolt	Weight (kg)
QL-30-SD	30	15	2500	2100	50	1.5	0.53	229	Y90L-6	1.1	4-M12*200	215
QL-50-SD	50	25	3000	2500	55	1.7	0.48	175	Y100-6	1.5	4-M16*400	308
QL-80-SD	80	40	3500	3000	70	2.1	0.52	197	Y112M-6	2.2	4-M16*400	521
QL-100-SD	100	50	4000	3500	75	2.5	0.52	209	Y112M-6	2.2	4-M16*400	597
QL-12-SD	120	60	4500	4000	80	3.1	0.52	209	Y112M-6	2.2	4-M16*400	695
QL-150-SD	150	75	5000	4500	90	3.7	0.50	200	Y132S-6	3.0	4-M20*500	986
QL-200-SD	200	100	6000	5000	100	4.2	0.50	200	Y132S-6	3.0	4-M20*500	1138
QL-250-SD	250	125	6000	5000	105	4.2	0.53	215	Y132M1-6	4.0	4-M24*500	1659
QL-300-SD	300	150	6000	5000	110	4.2	0.53	215	Y132M1-6	4.0	4-M24*500	1710
QL-400-SD	400	200	7000	6000	130	5.2	0.60	190	Y132M2-6	5.5	6-M24*500	2311
QL-500-SD	500	250	7000	6000	140	5.2	0.60	190	Y160M-6	7.5	6-M24*500	2715
QL-550-SD	550	275	7000	6000	150	5.2	0.77	245	Y160M-6	7.5	8-M27*500	2834
QL-600-SD	600	300	8000	7000	160	5.5	0.77	245	Y160M-6	7.5	8-M27*500	2967

QL model double lifting points screw hoist

Model	Hoisting Force (KN)	Lowering Force (KN)	Lifting Stem (mm)			Lifting height (m)	Lifting speed		Motor		Foundation bolt	Weight (kg)
Model	Hoisting Force (KN)	Lowering Force (KN)	Total length	Thread length	Diameter	Lifting height (m)	Manual (r/min)	Electric (mm/min)	Model	Power (KW)	Foundation bolt	Weight (kg)
QL-2*50-SD	2*50	2*25	3000	2500	55	1.7	0.48	175	Y132S-6	3.0	8-M16*400	575
QL-2*80-SD	2*80	2*40	3500	3000	70	2.1	0.52	197	Y132M1-6	4.0	8-M16*400	991
QL-2*100-SD	2*100	2*50	4000	3500	75	2.5	0.52	209	Y132M1-6	4.0	8-M16*400	1025
QL-2*120-SD	2*120	2*60	4500	4000	80	3.1	0.52	209	Y132M1-6	4.0	8-M16*400	1274
QL-2*150-SD	2*150	2*75	5000	4500	90	3.7	0.50	200	Y132M2-6	5.5	8-M20*500	1870
QL-2*200-SD	2*200	2*100	6000	5000	100	4.2	0.50	200	Y132M2-6	5.5	8-M20*500	2176
QL-2*250-SD	2*250	2*125	6000	5000	105	4.2	0.53	215	Y160L-8	7.5	8-M24*500	3160
QL-2*300-SD	2*300	2*150	6000	5000	110	4.2	0.53	215	Y160L-8	7.5	8-M24*500	3310
QL-2*400-SD	2*400	2*200	7000	6000	130	5.2	0.60	190	Y180L-8	11	8-M24*500	4512
QL-2*500-SD	2*500	2*250	7000	6000	140	5.2	0.60	190	Y180L-8	11	8-M24*500	5310
QL-2*550-SD	2*550	2*275	7000	6000	150	5.2	0.77	245	Y225S-8	18.5	8-M24*500	5505
QL-2*600-SD	2*600	2*300	8000	7000	160	5.5	0.77	245	Y225S-8	18.5	8-M24*500	5804
