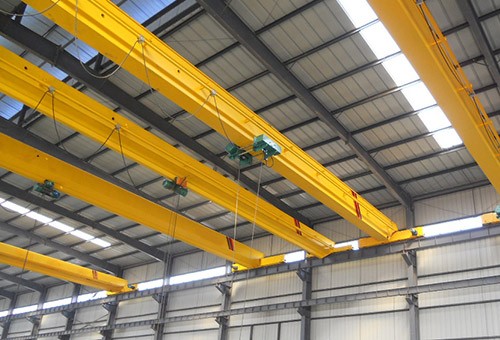

LDT Model Low Headroom Electric Single Girder Overhead Crane

INQUIRY

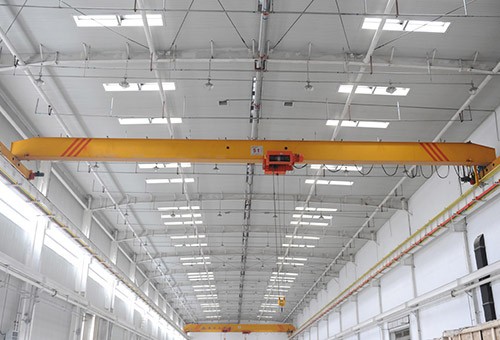

Introduction:
LDT low headroom EOT crane is specially designed minimize crane height to suit for height limited workshop with higher lifting height,

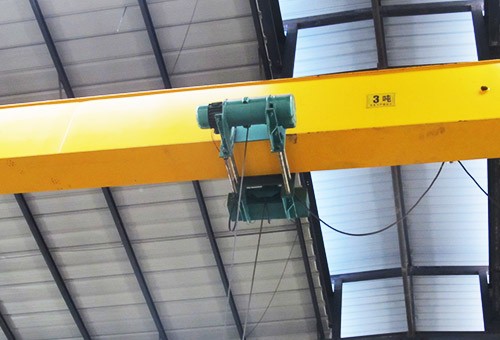

It equip with Special designed low headroom wire rope or chain hoist.
Compare to normally type crane, LTD Crane can save height space to increasing effective hoisting height,make full use of effective interior
space to meet lifting requirement.

Advantage:

Minimize crane height
Compact structure hoist
Double Speed Hoist with VVVF speed controller
High precision gear making crane low noise

Technical Parameter:

1~10t Technical parameter:

crane travelling mechanism	working speed		(ground)20	(ground)30	room
	speed ratio		58.78	39.38	26.36
	motor	type	YSE802-4	YSE90L-4	ZDR100-4
		power	2×0.8	2×1.5	2×1.5
		rotational speed	1380
Lifting mechanism&electric hoist travelling mechanism	model of electric hoist		MD1型model			CD1型model
	lifting speed		8/0.8(7/0.7)			8(7)
	lifting height		6、9、12、18、24、30
	travelling speed		20
	motor		cone squirrel-cage model
Working Duty			A3
electric current			Three-phase A.C. 380V, 50Hz
Wheel diameter			Φ270
width of trail			37~70mm

16t Technical parameter:

crane travelling mechanism	working speed		20/30
	motor	type	YSE90L-4	YSE80L1-4	YSE90L-4
		power	2×1.5	4×0.8	4×1.5
		span	7.5~14	14＜S≤19.5	19.5＜S≤31.5
Lifting mechanism&electric hoist travelling mechanism	model of electric hoist		MD1型model		CD1型model
	lifting speed		3.5/0.35		3.5
	hoisting height		6、9、12、18、24、30
	travelling speed		20
	motor		cone squirrel-cage model
Working Duty			A3
electric current			Three-phase A.C. 380V, 50Hz
Wheel diameter			Φ370
width of trail			37~70mm

20t Technical parameter

crane travelling mechanism	working speed		20/30
	motor	type	YSE90L1-4	YSE90L1-4
		power	4×1.5	4×1.5
		span	7.5~31.5	25.5~31.5
Lifting mechanism&electric hoist travelling mechanism	model of electric hoist		HC型model	HM型model
	lifting speed		3.5	3.5/0.35
	hoisting height		6、9、12、18、24、30
	travelling speed		20
	motor		cone squirrel-cage model
Working Duty			A3
electric current			Three-phase A.C. 380V, 50Hz
Wheel diameter			Φ370
width of trail			37~70mm

Working Class:A5
Model: LDT
Load capacity: 1~20 Ton
Span: 7.5~22.5m
Lifting height: 6~30m
Working class: A3
Control method: pendent control or radio remote control
Application: Height limited workshop/factory/warehouse with higher lifting height demands.
