Casting Overhead Crane

Overview

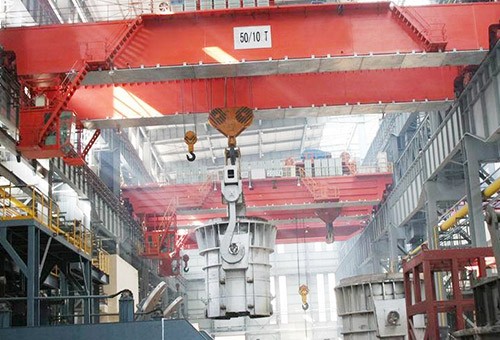

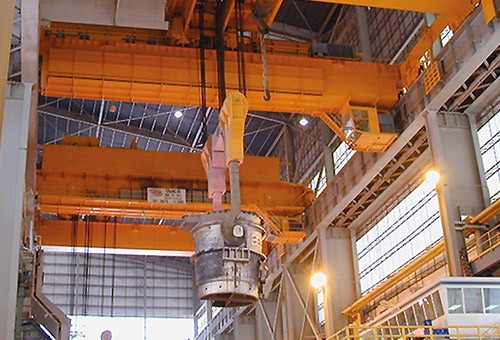

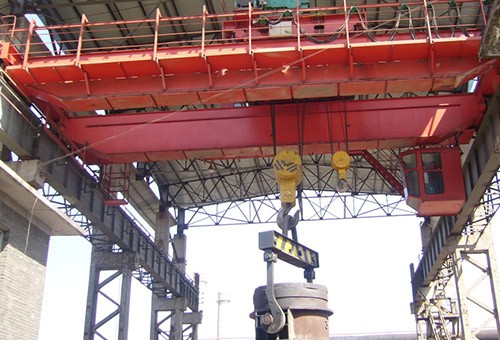

Steel plant casting overhead crane used in meltshop is one of the key equipment of steelmaking process, mainly used for hot metal charging to the converter in the converter mill, and will hoist the ladle to the continuous casting large slewing platform in hot metal receiving workshop or to refining converter  in refining workshop.

Feature

1, Double brake system and overspeed switch for lifting machenism
2, Special speed regulator for lifting mechenism, The stator voltage regulation and frequency control for selecting
3, Strong environmental applicability
4, High strength structure, good stability
5, A variety of speed regulation mode, smooth operation
6, Fasf speed, high efficiency
7, High temperature dustproof motor and electric apparatus
8,High duty and meet 24 hour production
9,Spring buffers were used for trolley and crane.

Advantage

1,Top brand motor and gearbox, such as ABB, SEW, Frand, Nord, Tailong, etc
2, Top brand electrcal system, such as Siemens, Schneider, CHNT, etc
3, Insulated cabin with air conditioner
4, Forged wheel and hook
5, High quality epoxy zinc rich primer

Technical data

• Model:  QDY

• Capacity:  5 ~ 74 ton

• Span:  10.5~31.5 m

• Hoisting height:  6~30 m

• Working class:  A7/4M

• Apllication:  lifting and transfering the ladle in steel plant.
