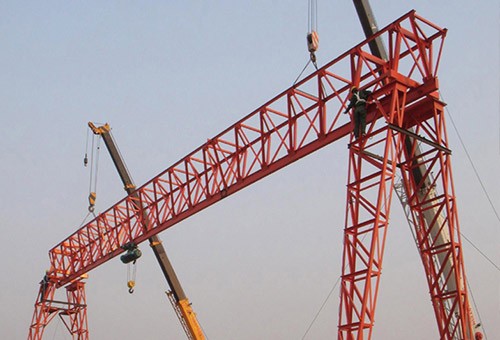

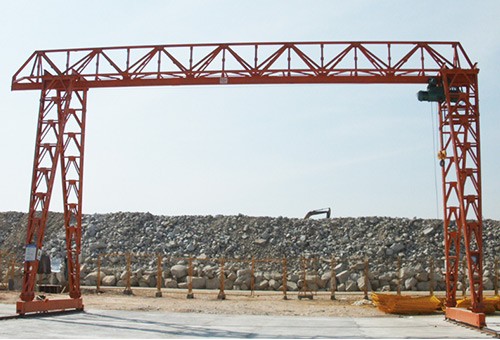

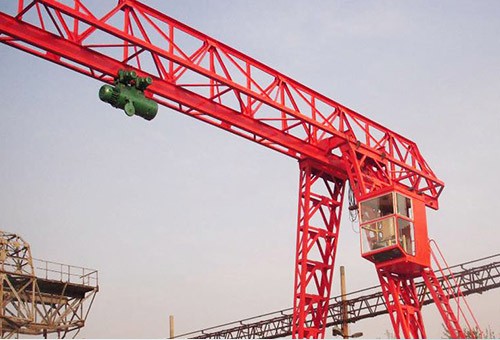

Truss type electric hoist gantry crane

• Overview:

• Truss type electric hoist gantry crane is a lightweight hoisting equipment, its hoisting mechanism is electric hoist, and main girder and leg are truss structure, is a ideal choice for hoisting cargo.

  Feature:

• 1,  Light weight, large load and strong wind resistance.
  2,  Simple structure, and easily operation and maintainance.
  3,  Widely used and easily installation.

  Advantage:

• 1,  Motor and gearbox adopt China famous brand products, like Nanjing Special motor, etc
  2,  Electrical adopts Siemens, Schneider,Chint famous brand.
  3,  Cheap price and more economies
  4,  Warranty: 24 months.

  Technical parameter:

• Rated load/ton	5	10	16	20	32
  Span/m	10-40
  Lifting height/m	30
  Working class	A4/1AM
  Lifting speed/m/min	8	7	3.5	3.5	3
  Trolley running speed/m/min	20	20	20	20	20
  Crane running speed/m/min	20	20	20	20	20
  Dead weight/t	10.5~37.5	16.8~52	18.9~65	24.5~77	27.5~98
  Number of wheel	4	4	4	4	4/8
  Max. wheel pressure/KN	52.5~12.1	95~183	131~242	167~298	238~41.5
  Steel track recommended	P24	P38	P43	P43	P43
  Power supply	3AC  220~480V  50/60Hz

•


• Model: MH

• Capacity: 5~32 ton

• Span: 10~40m

• Hoisting height: 6~30m

• Working class: A4/1AM

• Appliance:  Loading, unloading and handing of cargo in open space, such as freight yard, building material market, stone factory, steel structure factory and so on.

FAQ

• Q:What’s your MOQ?

  A:1 Set;

• Q:What’s your package?

  A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

• Q:What’s your delivery period?

  A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

• Q:Do you provide lift tools?

  A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc

• Q:Could your winches drag inclined?

  A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
