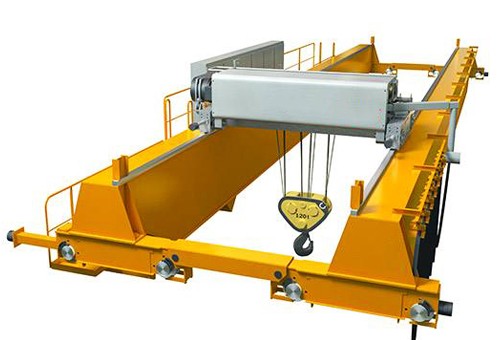

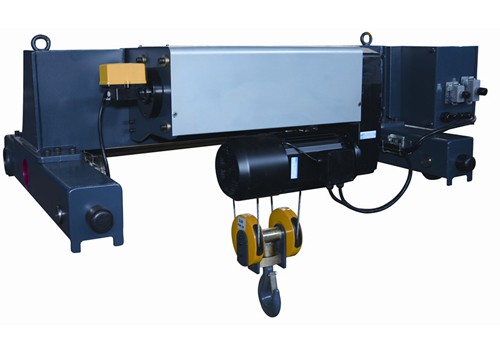

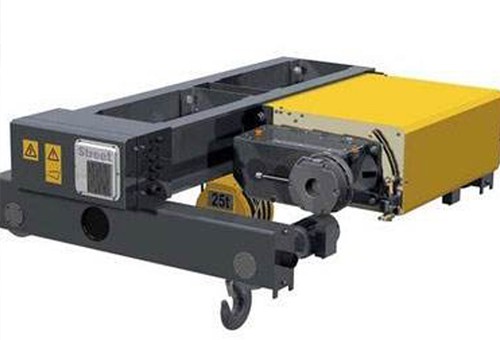

European Type Wire Rope Electric Hoist - Double Girder

Overview:
European type electric hoist is a kind of new products developed with advanced design technology which accords to the European FEM standard and DIN standard. The whole set of electric hoist is a new energy-saving and environment friendly product.
It is widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.
It can also be used to the hoist double beam, gourd gantry crane or cantilever crane It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.

Features:
1, Full frequency conversion control, double-speed output, millimeter accuracy.
2, Hook 0 displacement at horizontal direction, rapid positioning.
3, Modern integration design, combine motor together with fan, reducer, rope drum and brake, compact structure.
4, Optimum cooling with good cooling performance, cooling is improved up by 30%, resistant to a temperature rise of 170 ° C.
5, Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster.

Advantages:
1, Compact structure, small headroom size, make full use of plant space.
2, Modular design and flexible combination.
3, Low-noise gearing design, silent operation.
4, High energy efficiency motor combined with gear reducer can achieve low energy consumption and high torque output.
5, High precision automatic adjustment of electromagnetic brake to achieve fast, low noise and reliable braking.
6, Wire rope with high strength and flexibility can achieve greater lifting breaking tension.
7, High strength alloy wheel set for longer life.

Technical parameter:

• Lifting capacity: 1T~ 100T(Customized)(for single girder or double girder cranes).

• Lifting height 3m~600m(Customized)

• Working class: M3-M8

• Control voltage 48V

• Variable frequency motor of trolley with the speed of 5/20m/min

• Protection grade of electric motor is Grade IP55,and insulation grade is F

• Lifting hook group with safety caps Environment temperature:-20~+40℃

FAQ

• Q:What’s your MOQ?

  A:1 Set;

• Q:What’s your package?

  A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

• Q:What’s your delivery period?

  A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

• Q:Do you provide lift tools?

  A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc

• Q:Could your winches drag inclined?

  A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
