Electric Hoist

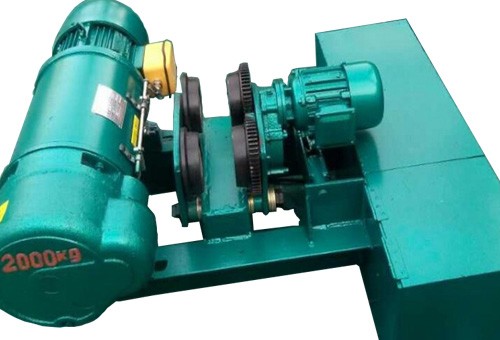

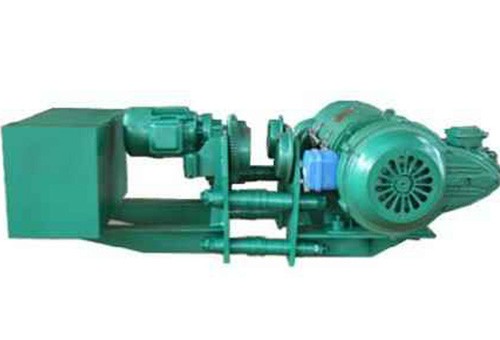

Workshop low headroom wire rope electric hoist

INQUIRY

Overview:
Low headroom electric hoist for sale is a kind of light-small lifting equipment and can be installed in single girder crane, bridge crane, gantry crane
and so on, also be used alone.This hoist is compact stucture and reach more lifting height for cargo when the workshop is a lower space.

Advantage:
1, Light weight,
2, Small volume, structure compact,
3, Variety of specifications,
4, Running smoothly
5, Easy operation and maintainance
6, High cost perfermance
7, More hoisting space

Technical data

Type		CD1, MD1
Lifting weight(T)		0.25	0.5	1	2	3	5	10	16	20
Lifting height(m)		3.6.9		6.9.12.18.24.30					9.12.18
Hoisting speed(m/min)		8 0.8/8						7 0.7/7	3.5 0.35/5	4
travelling speed(m/min)		20	20/30						20
Wire rope	Dia	3.6	4.8	7.7	11	13	15	15	1735	19.5
	spec	6x19	6 x 37 + 1
Hoisting Motor	Type	ZD112-4	ZD121-4	ZD122-4	ZD131-4	ZD132-4	ZD141-4	ZD151-4		ZD152-4
			ZDS0.2/0.8	ZDS0.2/1.5	ZDS0.4/3.0	ZDS0.4/4.5	ZDS0.8/7.5	ZDS1.5/13	ZDS1.5/13
	Power(kw)	0.4	0.8 0.2/8	1.5 0.2/5	3.0 0.4/3.0	4.5 0.4/4.5	7.5 0.8/7.5	13 1.5/13	13 1.5/13	18.5
	Rotate speed	1380 (r/min)
	Current(A)	1.25	2.4 0.72/2.4	4.3 0.72/4.3	7.6 1.25/7.6	11 2.4/11	18 2.4/18	30 4.3/30		41.7
travelling Motor	Type	ZDY110-4	ZDY111-4		ZDY112-4		ZDY121-4
	Power(kw)	0.06	0.2		0.4		0.8	0.8x2
	Rotate speed	1400(r/min)	1380(r/min)
	Current(A)	0.3	0.72		1.25		2.4			4.3
NO of connecting		120
Working system		Intermediate FC=25% M3
Power source		380V 50HZ 3phs

Model: CD, MD
Capacity: 0.5~16 ton
Lifting height: 6~30 m
Working class: M3, M4
Ambient temperature: -20℃~45℃
Application: Workshop, warehouse ,overhead crane and gantry crane indoor

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
