Electric Vertical Capstan

Excellent design,versatility of the capstan, reliable performance , smooth running, variable speeds which meets your different needs, compact structure and nice appearance; maintenance is easy and fast; Wireless remote control is available;

Product description

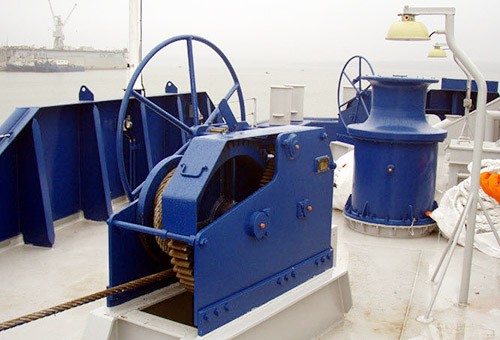

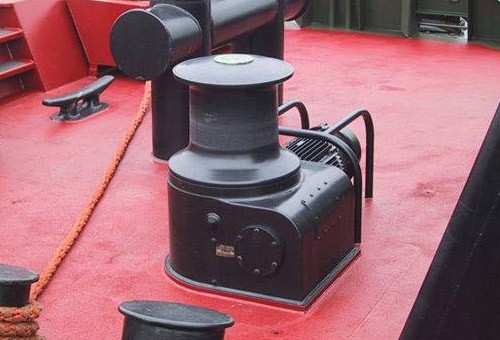

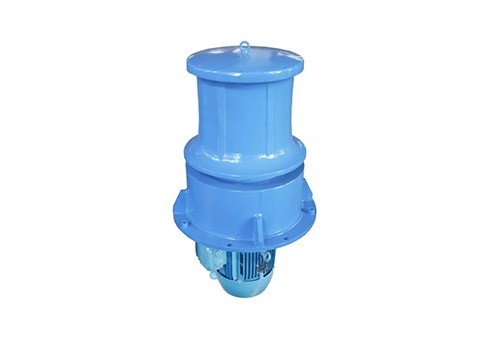

Vertical capstan winch is a machine with a drum rotating round a vertical spindle driven by a motor, it’s usually mounted on the deck in a vertical position
Vertical design suits smaller powerboats or sailboats and can be utilised for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling from any direction.

Electric Capstan Technical Parameters
Type	Warping load (KN）	Warping speed (m/min）	Wire Dia(mm)	Motor power (kw)
Type	Warping load (KN）	Warping speed (m/min）	Wire Dia(mm)	Electric	Hydraulic
NDL5	5	≥18	φ11	3/1.2	5.5
NDL10	10	≥18	φ11	4.3/1.7	7.5
NDL20	20	≥18	φ15	7.5/7.5/5	15
NDL30	30	≥18	φ17.5	16/16/11	18.5
NDL40	40	≥18	φ20.5	16/16/11	18.5
NDL50	50	≥18	φ20.5	22/22/16	30
NDL70	70	≥15	φ26	30/30/22	45
NDL100	100	≥15	φ28	45/45/30	55
D(Y)J120	120	≥15	φ32.5	60/60/45	75
D(Y)J150	150	≥15	φ36.5	60/60/45	90
D(Y)J200	200	≥15	φ40	75/75/36	110
D(Y)J250	250	≥12	φ46	75/75/36	110

We have exported our industrial crane and winch equipment to Europe ,America,Japan,Southeast Asia and other countries and regions,and received good feedback from them.Our crane and winch equipment have been serving pipeline making industry ,auto industry ,railway construction, cement industry ,steel ,coal mine ,power, port ,chemical and other heavy industry.For more details ,please feel free to contact us.
