Highway truss type beam launcher

INQUIRY

Overview:

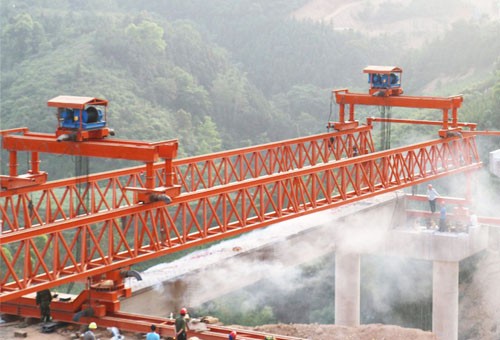

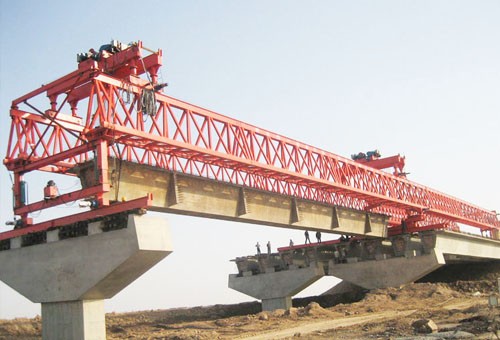

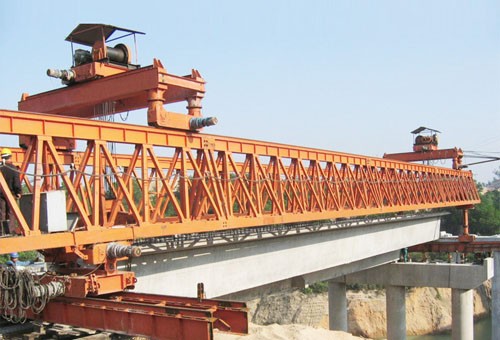

Highway truss type beam launcher is bridge crane that places precast concrete beam into precast pier. And it consist of main girder,front leg, middle leg,
rear leg, rear auxiliary leg, lifting trolley, hydraulic system and electrical device.

Feature:
1, Light weight, large load and strong wind resistance.
2, Simple structure, and easily operation and maintainance.
3, Widely used and easily installation.

Advantage:
1, Motor and gearbox adopt China famous brand products, like Nanjing Special motor, etc
2, Electrical adopts Siemens, Schneider,Chint famous brand.
3, Cheap price and more economies
4, Warranty: 24 months.

Technical parameter:

Span	50m			40m		30m
Type	QJ200/50	QJ180/50	QJ160/50	QJ140/40	QJ120/40	QJ100/30	QJ80/30
Rated capacity	200t	180t	160t	140t	120t	100t	80t
Bridge span	30~50m			20~40m		20~30m
Max.slope	longitudinal slope ≤5% Cross slope ≤5%
Lifting speed	0.41m/min	0.45m/min	0.5m/min	0.56m/min	0.65m/min	0.75m/min	0.9m/min
trolley longitudinal speed	3m/min
trolley cross speed	3m/min
Crane slide longitudinal travel speed	3m/min
Crane slide cross travel speed	3m/min
Adaptive inclined bridge angle	0~45°
Adaptive curved bridge radius	400m			300m		200m

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
