Double Girder Overhead Crane

INQUIRY

Overview

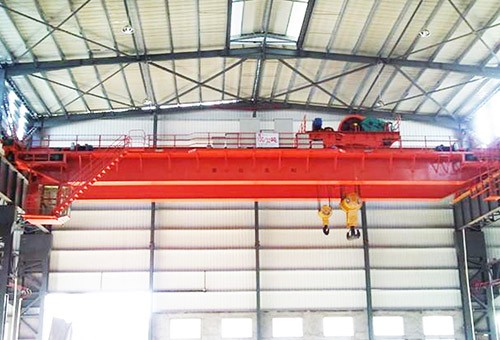

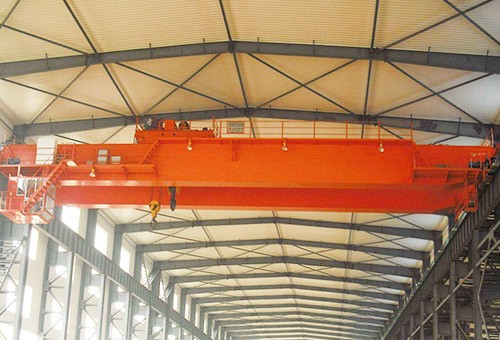

Double girder overhead crane is a kind of hoisting and handing equipment, which straddles over the workshop and makes longitudinal movement along the rail direction, whose electric trolley makes transverse movement.

Feature

1, Multiple operation modes are available for selection, cabin, pendant and wireless remote control
2, Strong environmental applicability
3, Various functions, can use a variety of spreader, such as hook, grab bucket,electromagnet, clamp,etc
4, High strength structure, good stability
5, A variety of speed regulation mode, smooth operation
6, Fasf speed, high efficiency

Advantages

1,Top brand motor and gearbox, such as ABB, SEW, Frand, Nord, Tailong, etc
2, Top brand electrcal system, such as Siemens, Schneider, CHNT, etc
3, Insulated cabin with air conditioner
4, Forged wheel and hook
5, High quality epoxy zinc rich primer
6, Frequency control

Technical data

Lifting capacity		ton	5	10	16/3.2	20/5	32/5	50/10
Workingclass (ISO/FEM)			A5/2M
Span		m	10.5~31.5
Lifting height		m	16	16	16/18	16/18	16/18	16/18
Lifting speed	Main hook	m/min	9.3	8.5	7.9	7.2	7.5	5.9
Lifting speed	Aux. hook	m/min			10.3	12.6	12.6	8.5
travelling speed	trolley	m/min	37.2	43.8	44.6	44.6	42.4	38.5
travelling speed	Crane	m/min	70	70	75	75	75	75
Weight	trolley	kg	2126	3424	6227	6856	10877	15540
Weight	Crane	kg	12700~31400	14300~34400	19100~39400	19900~41500	26960~52700	35350~64955
Max. wheel pressure		KN	125	160	205	231	327	450
Steel rail recommended			P43	P43	P43/QU70	P43/QU70	QU70	QU80
Power supply			3AC 220V~480V 50/60Hz

Model: QD
Capacity: 5 ~ 50 ton
Span: 7.5~31.5 m
Hoisting height: 6~30 m
Working class: A5/2M
Apllication: Lifting and handing cargo in workshop, warehouse, steel plant, hydropower station, etc

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

As a professional crane and winch manufacturer in China,we have differentiated our supplier network,which allowing us to be more cost-effective.We provide a high quality and reliable product line covering gantry cranes,bridge cranes,mobile cranes,marine cranes,hoist lift,electric chain hoist,windlass,anchor winch,mooring winch,electric and hydraulic winches,spillway gate hoist.etc

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
