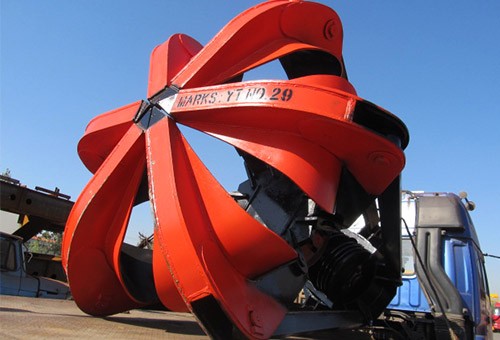

Four Rope Mechanical 6 Petals Grab Bucket

INQUIRY

Advantage :

Two Petals or Six peels on optional;
Grab blade made by wear-resisting steel
Sandblast before painting with polyurethane paint suitable for sea or acid environment
Light duty, Middle duty, Heavy duty on optional as per your actual demands;
Simple structure easy to maintenance and repair;
Grab teeth also on optional

Model	Volume (m3)	Type	Rate of Material (t/m3)	Grab weight (t)	Crane Capacity (t)	Grab Height when close H (mm)	Grab height when open H1 (mm)	Grab Close length A(mm)	Grab Open Length B(mm)	Grab Width C(mm)	Remark
U1	1	Heavy	＞1.8-2.9	2.1	5	2635	3065	1850	2544	1224
U2	1.5	Middle	＞1-1.8	2.25	5	2765	3280	2150	2798	1324
U3	2.5	Light	＞0.5-1	2.38	5	2985	3444	2350	3227	1570
U4	2	Heavy	＞1.8-2.9	3.94	10	3184	3757	2410	3070	1412
U5	3	Middle	＞1-1.8	4.4	10	3301	3960	2650	3308	1642
U6	5	Light	＞0.5-1	4.6	10	3549	4150	2950	3790	1988
U7	3	Heavy	＞1.8-2.9	6.4	15	3856	4532	2616	3326	1806
U8	4.5	Middle	＞1-1.8	6.98	15	4076	4851	2956	3756	1906
U21	2.5	Light	＞0.86	2.83	5	3350	3809	2350	3150	1560
U27	2	Middle	＞1-1.6	2.5	5	2926	3426	2200	3000	1500
U56	9	Light	＞0.95	7.4	16	4695	5785	3385	4900	2356
U99	0.5	Heavy	＞1.7-2.5	2	5	2197	2735	1600	1800	950
U100	0.5	S-Heavy	＞2.5-4	2.35	5	2292	2882	1430	1800	1080
U67	1.5	Middle	＞1-1.9	2.46	5	2968	3492	2120	2800	1360
U41	4	Heavy	＞2.5	8.46	20	4215	4820	2800	4200	1874
U43	1	Heavy	＞2-3	2.28	5	2667	3253	2100	2600	1152
U44	1	Heavy	＞2-3	2.33	5	2685	3462	2100	2600	1152
U45	1.5	Middle	＞1-1.9	2.46	5	2667	3253	2100	2600	1452
U46	1.5	Middle	＞1-1.9	2.44	5	2667	3253	2100	2600	1452
U47A	2.5	Light	0.92	2.25	5	2926	3426	2200	3000	1620
U47	3	Light	0.92	2.4	5	2926	3426	2200	3000	1852
U48	2	Heavy	＞2-3	3.96	10	3315	4015	2500	3200	1460
U48A	2	Heavy	＞2-3	4.12	10	3420	4195	2500	3200	1460
U49	2	Heavy	2.7	4.66	10	3455	4215	2500	3300	1464
U50	3	Middle	＞1-2	4.27	10	3315	4015	2500	3200	1960
U51	3	Middle	＞1-2	4.39	10	3405	4258	2500	3200	1960
U52	6	Light	0.92	4.24	10	3615	4265	2800	3700	2250
U53	3	Heavy	2.5	7	15	3850	4580	2720	3400	1678
U54	3	Heavy	2.5	7.36	15	3980	4770	2720	3400	1678
U72	3	Heavy	1.7	7.5	15	3850	4580	2720	3400	1678
U55I	4.5	Middle	1.7	7.5	15	4130	4750	3000	4050	2070
U55II	4.5	Middle	1.7	7.8	15	4255	4930	3000	4050	2070
U76	4.5	Middle	＞1-2	7.6	15	4130	4750	3000	4050	2070
U63	3	Middle	＞1-1.9	4.3	10	3315	4015	2500	3200	1960
U69	1.5	Middle	＞2.5-3.3	2.5	5	2747	3463	2100	2600	1452
U101	0.75	S-Heavy	＞2.5-3.3	2.47	5	2735	3125	1650	2340	1054
U102	0.75	S-Heavy	＞1.7-2.5	2.54	5	2815	3345	1650	2340	1054
U105	1	Heavy	＞1.7-2.5	2.5	5	2835	3370	1800	2530	1150
U106	1	Heavy	＞1-1.7	2.55	5	2915	3575	1800	2530	1150
U109	1.5	Middle	＞1-1.7	2.54	5	2935	3385	1950	2740	1366
U110	1.5	Middle	＞1-1.7	2.6	5	3015	3605	1950	2740	1366
U113	2.5	Light	1	2.6	5	3135	3594	2200	3120	1550
U115	1.5	S-Heavy	＞2.5-3.3	4.7	10	3490	3700	1960	2920	1416
U116	2	S-Heavy	＞2.5-3.3	4.76	10	3570	4130	1960	2920	1416	teeth
U119	2	Heavy	＞1.8-3.3	4.8	10	3640	4240	2200	3220	1528
U123	3	Middle	＞1-1.7	4.8	10	3747	4297	2400	3430	1764
U124	3	Middle	＞1-1.7	4.86	10	3827	4517	2400	3430	1764	teeth
U127	5	Light	1	4.8	10	3990	4675	2760	3800	2060
U126	3	Middle	＞1-1.7	4.96	10	3827	4376	2400	3430	1700
U126A	3	Middle	＞1-1.7	5	10	3827	4376	2400	3430	1700
U129	2.5	S-Heavy	＞2.5-3.3	8.15	16	4285	4838	2350	3430	1628
U130	2.5	S-Heavy	＞2.5-3.3	8.3	16	4385	5050	2350	3430	1628	teeth
U133	3.2	Heavy	＞1.7-2.5	8.0	16	4455	5125	2600	3750	1792
U134	3.2	Heavy	＞1.7-2.5	8.15	16	4555	5345	2600	3750	1792
U137	4.8	Middle	＞1-1.7	7.99	16	4505	5243	2820	4050	2078
U138	4.8	Middle	＞1-1.7	8.14	16	4605	5473	2820	4050	2078	teeth
U141	8	Light	1	7.84	16	4775	5530	3200	4380	2350
U143	3	S-Heavy	＞2.5-3.3	9.78	20	4695	5335	2400	3800	2892
U144	3	S-Heavy	＞2.5-3.3	9.9	20	4795	5615	2400	3800	1892	teeth
U147	4	Heavy	＞1.7-2.5	9.96	20	4795	5425	2900	4000	1892
U148	4	Heavy	＞1.7-2.5	10.1	20	4895	5705	2900	4000	1892	teeth
U149	4	Heavy	＞1.7-2.5	9.97	20	4795	5425	2900	4000	1892
U151	6	Middle	＞1-1.7	10.0	20	4955	5710	3200	4500	2288
U152	6	Middle	＞1-1.7	10.2	20	5050	5990	3200	4500	2280	teeth
U155	10	Light	1	9.8	20	5215	6175	3500	5000	2478
U163	4	Heavy	＞1.7-2.5	9.96	20	4795	5425	2900	4000	1892

Working Class: 1. Grab can open in sky 2. Two ropes for hoisting, two ropes for open & close; 3. Suitable for kinds of double beams cranes or single beam cranes with two hoists 4. Balance beam on drum to keep grab balance during all moving motions; 5. Suits for under water works

Email:sale01@nbcrane.com

Whatsapp:+86-15560160983

FAQ

Q:What’s your MOQ?
A:1 Set;
Q:What’s your package?
A:Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
Q:What’s your delivery period?
A:Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q:Do you provide lift tools?
A:Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc
Q:Could your winches drag inclined?
A:Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
